Telescope set

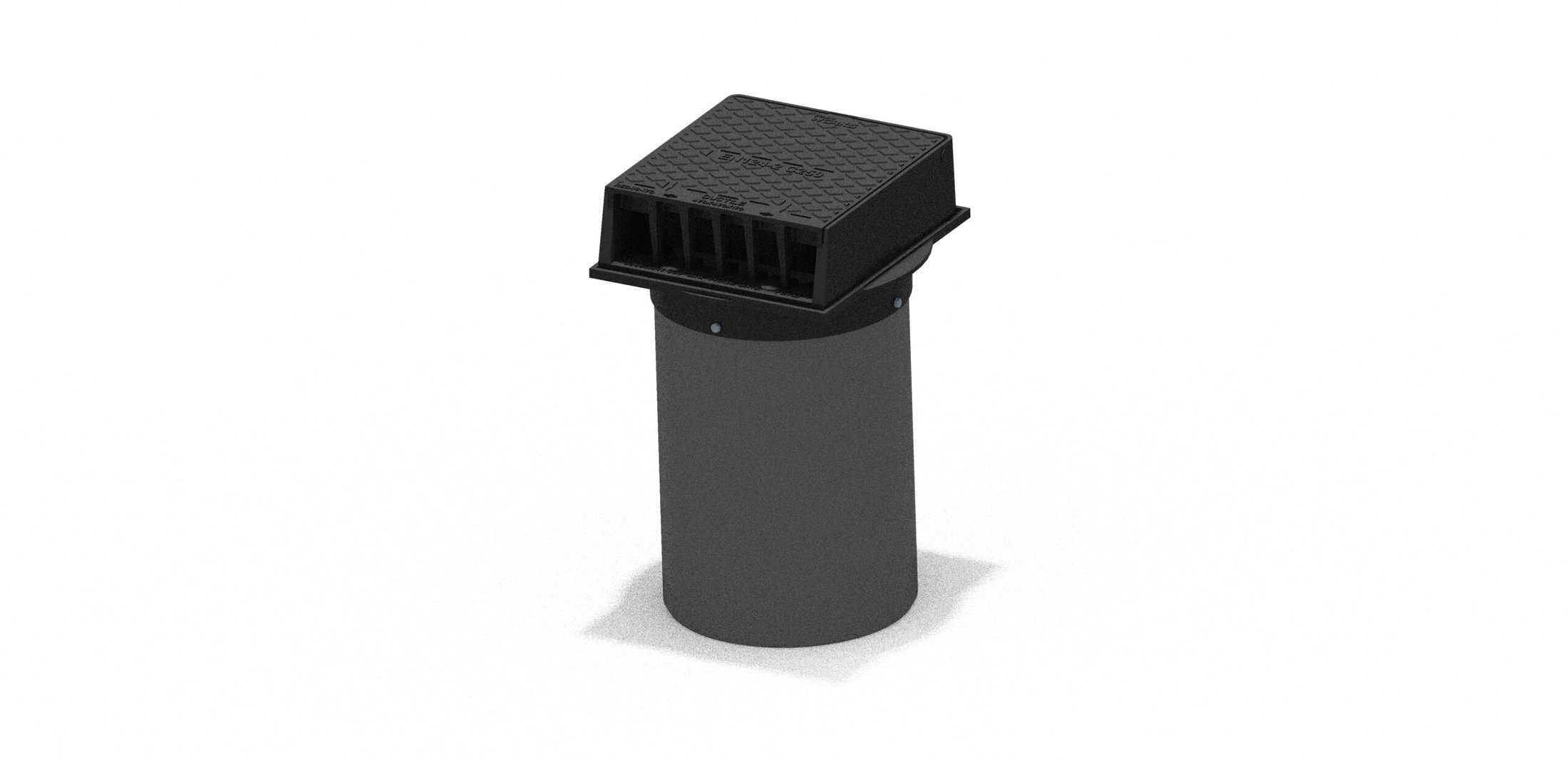

Jaw frame C250 SN2 telescope set

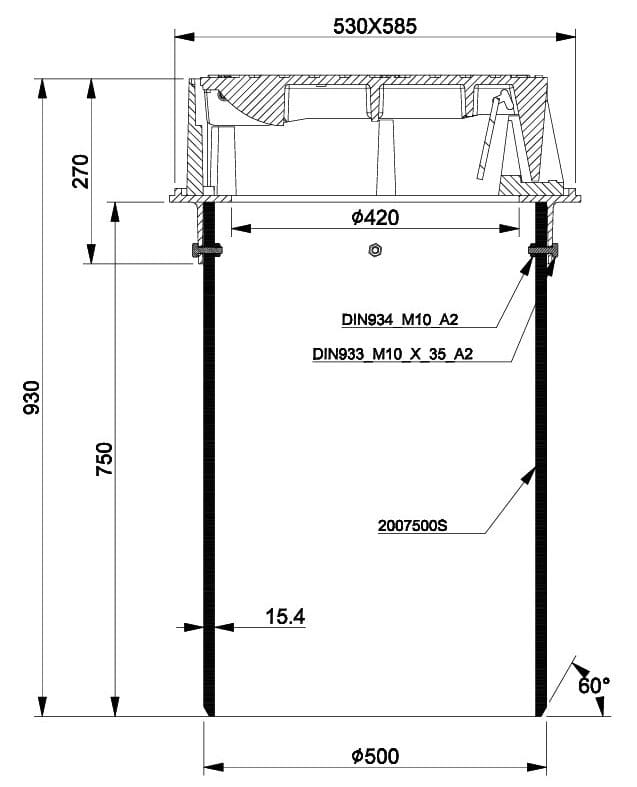

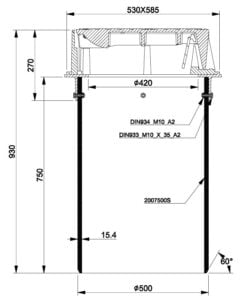

500-series Jaw frame C250 Telescope set 2005040G consists of a floating jaw frame 3366139/40-N set, DN500 x 15,3mm x 0,75m SN2 telescope pipe and M10 bolts and nuts. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015. Set is manufactured from ductile iron EN-GJS-500/7 and classified under Load Class C250, pipe is from PE and bolts and nuts from A2 stainless steel.
Lid can be opened using by hand and is fixable open position.
Typical application is along the curb stone.
Specifications:
Product code:
2005040G
Warranty:
2
Years
Product category:
Normal, SN2
Market:
Estonia
Product type:
Set
EN load class:
C250
Material marks:
Iron and plastic telescope
measurements:
Weight:
109
kg
Width:
600
mm
Max height:
930
mm
Lenght:
585
mm
Frame opening:
420
mm
