Manhole cover

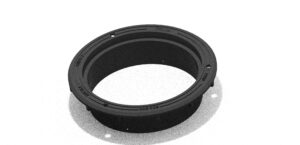

600 round frame F900

600-series round frame 3366167-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class F900.

Frame is compatible with a round blind cover 3366168-N and grating 3366169-N.

Typical applications are harbours, airports, military sites and others where high load bearing is needed.

Specifications:
Product code:
3366167-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Frame
EN load class:
F900
Material marks:
Ductile EN-GJS-500/7

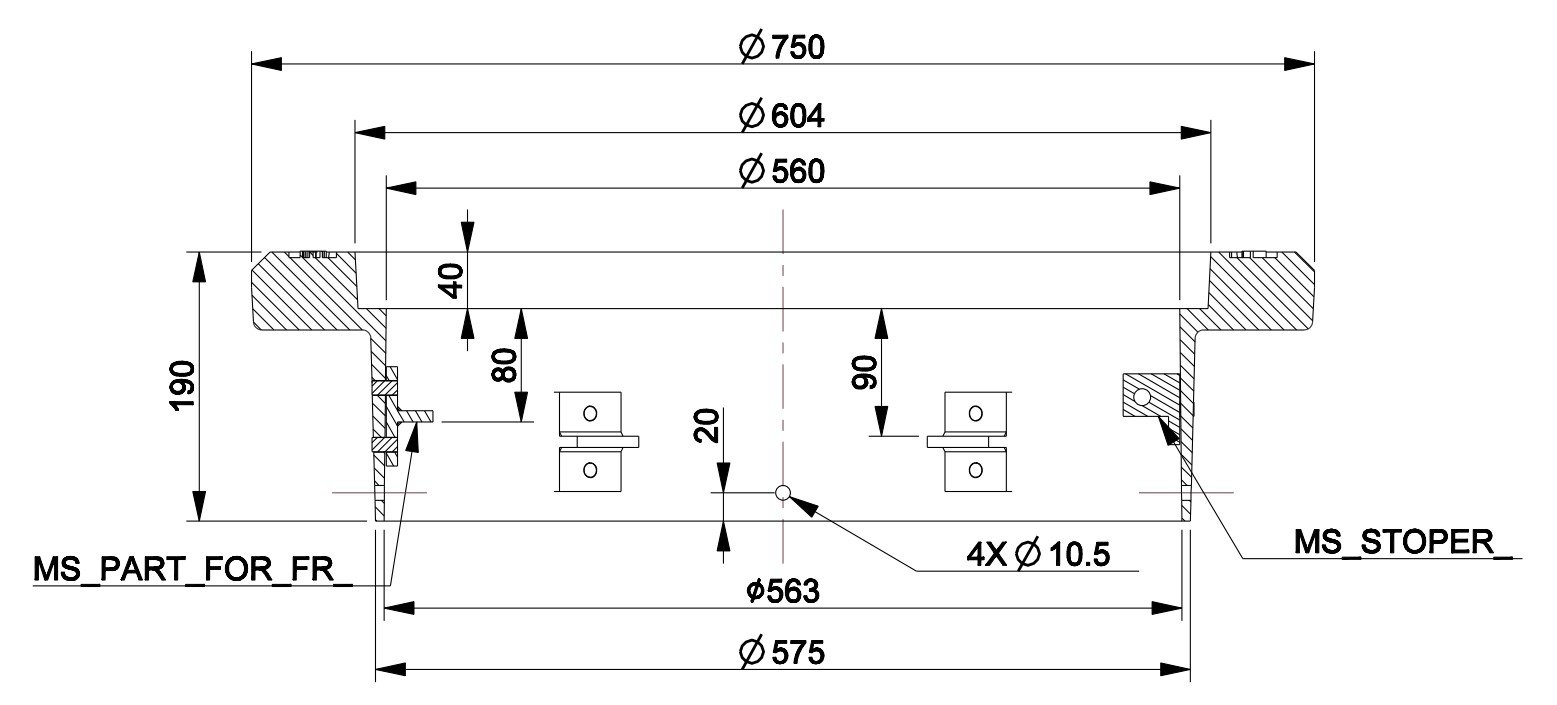

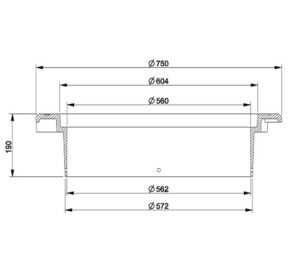

measurements:
Weight:
48
kg
Max height:
190
mm
diameter:
750
mm
Seating depth:
40
mm
Frame opening:
560
mm
