Manhole cover

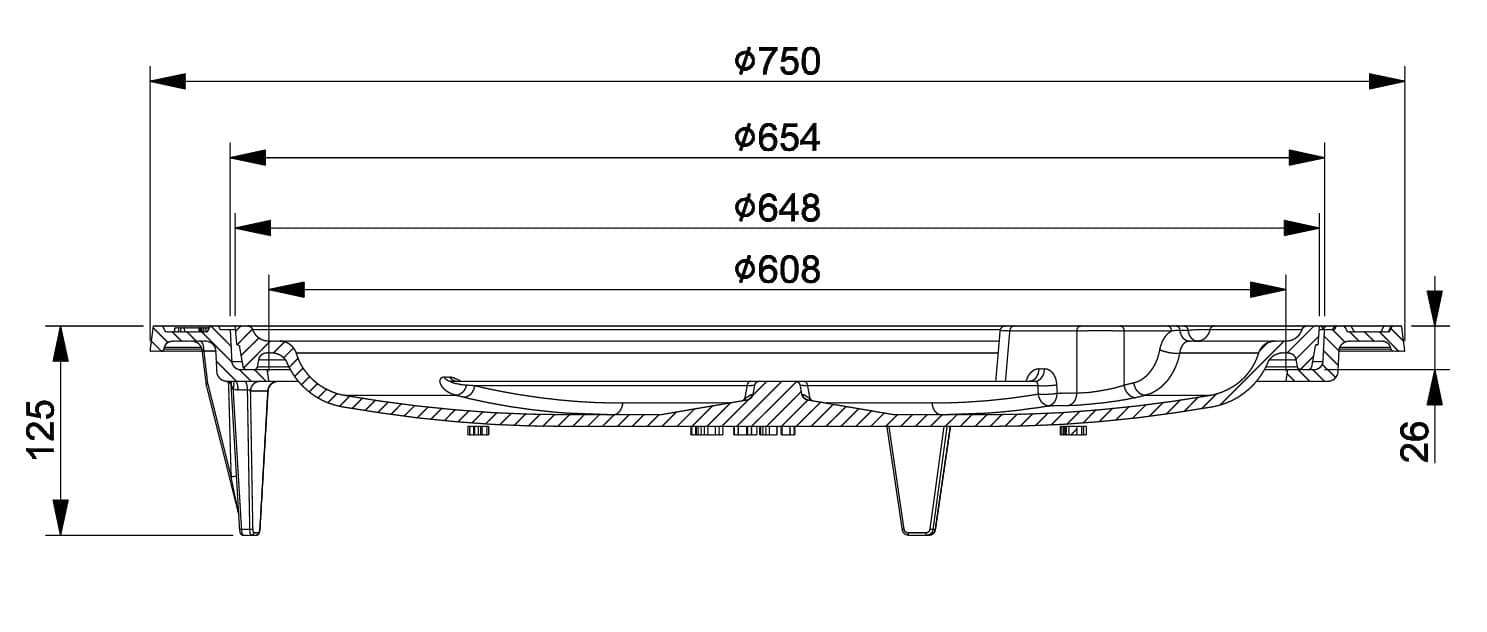

600 Round Frame and Blind Manhole Cover Set

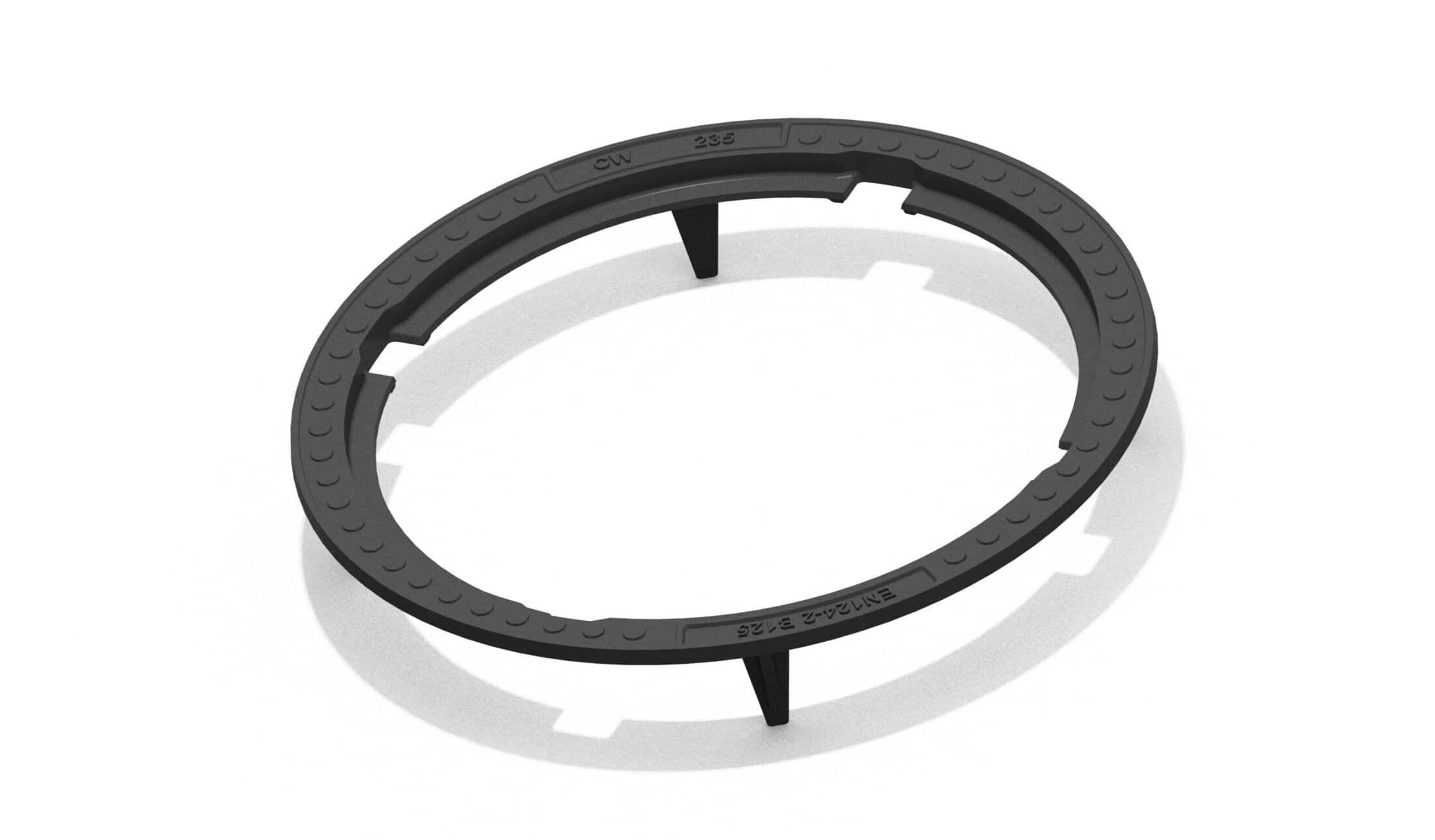

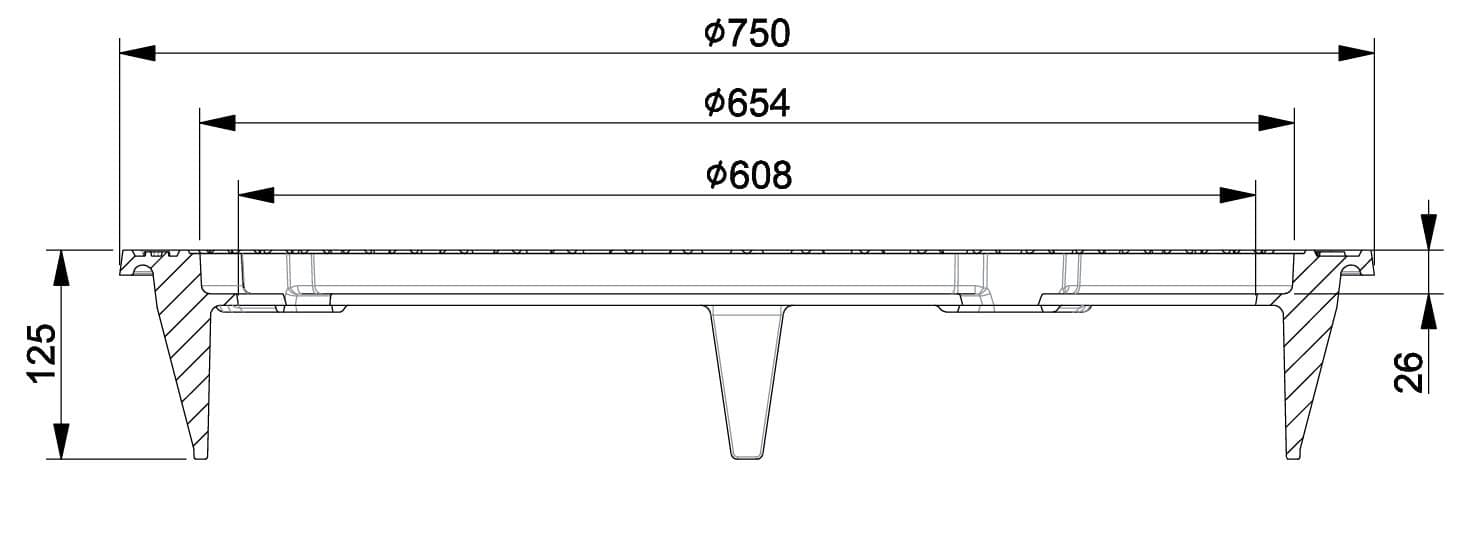

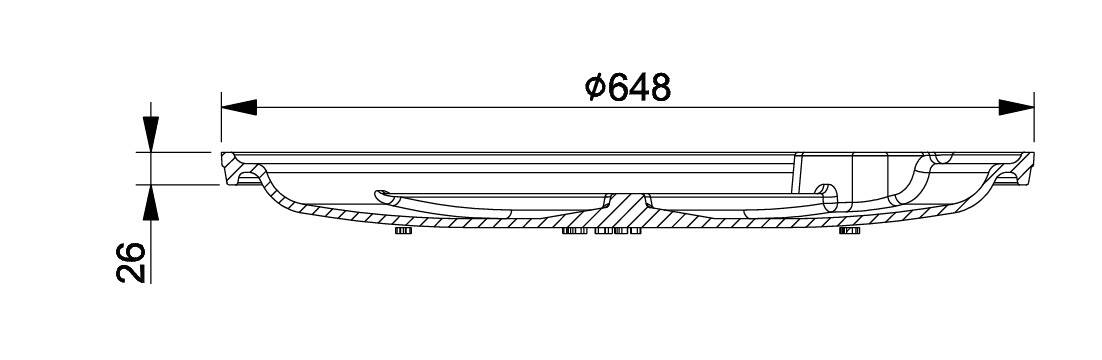

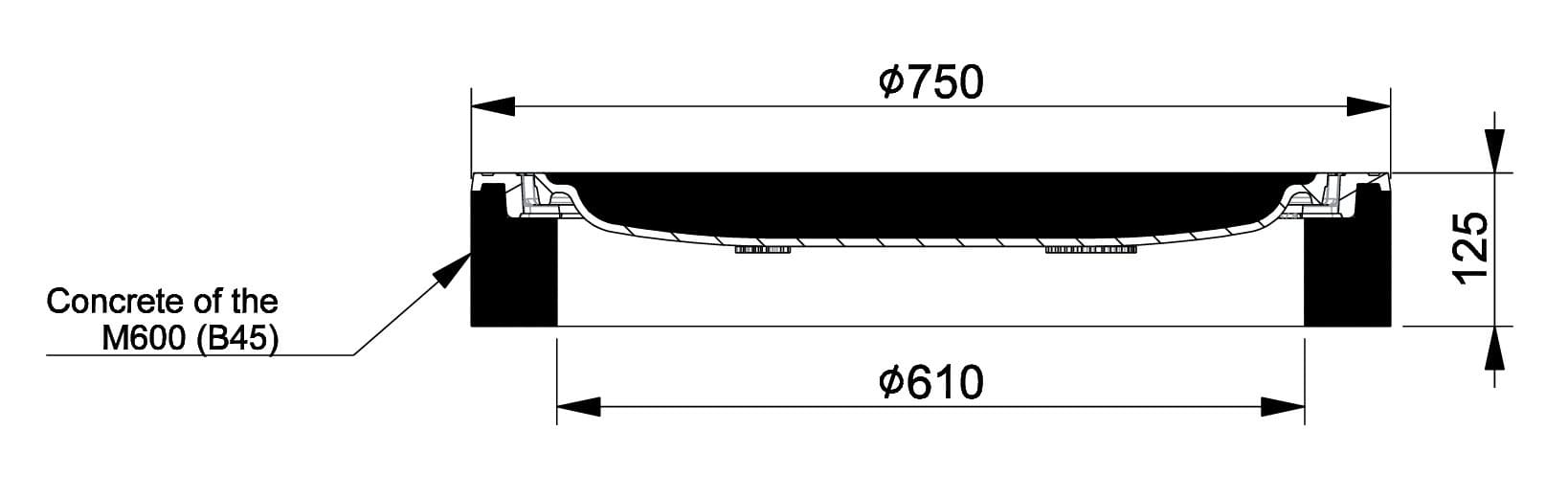

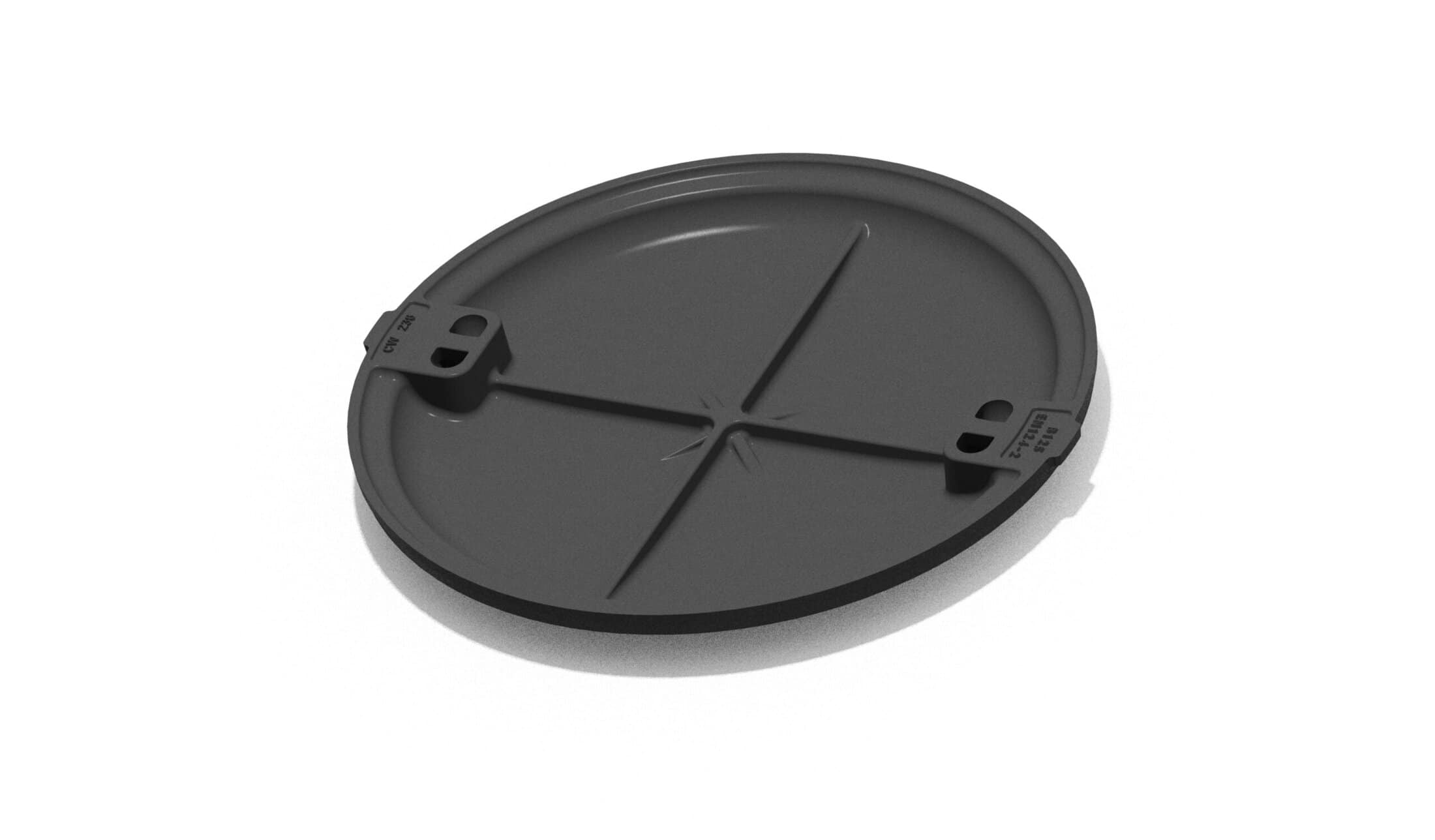

600 B125 3366235/236-N consists of a floating, round frame 3366235-N and blind cover 3366236-N. The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class B125. 3366235/236-N set can be used in combination with hydraulic concrete of class M600 (B45), supplied additionally.

Cover can be opened using a crowbar.

Typical applications are areas subjected for pedestrians and pedal cyclists.

Specifications:
Product code:
3366235/236-N
Warranty:
2
Years
Product category:
Normal
Market:
Ukraine
Product type:
Set
EN load class:
B125
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
40
kg
Max height:
125
mm
diameter:
750
mm
Seating depth:
26
mm
Frame opening:
608
mm
