Manhole cover
600 round frame and blind cover with padlock lockable dust plate

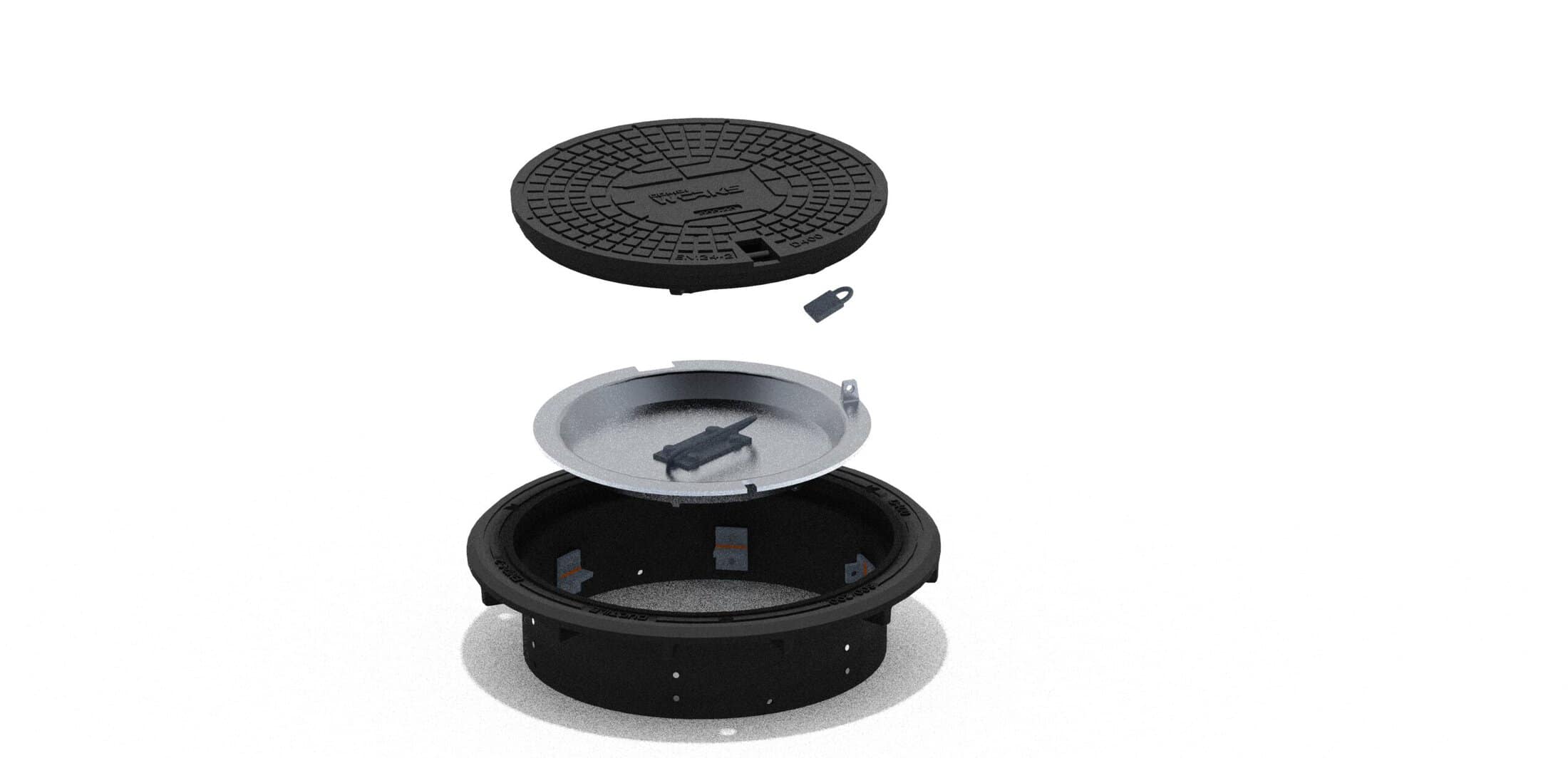

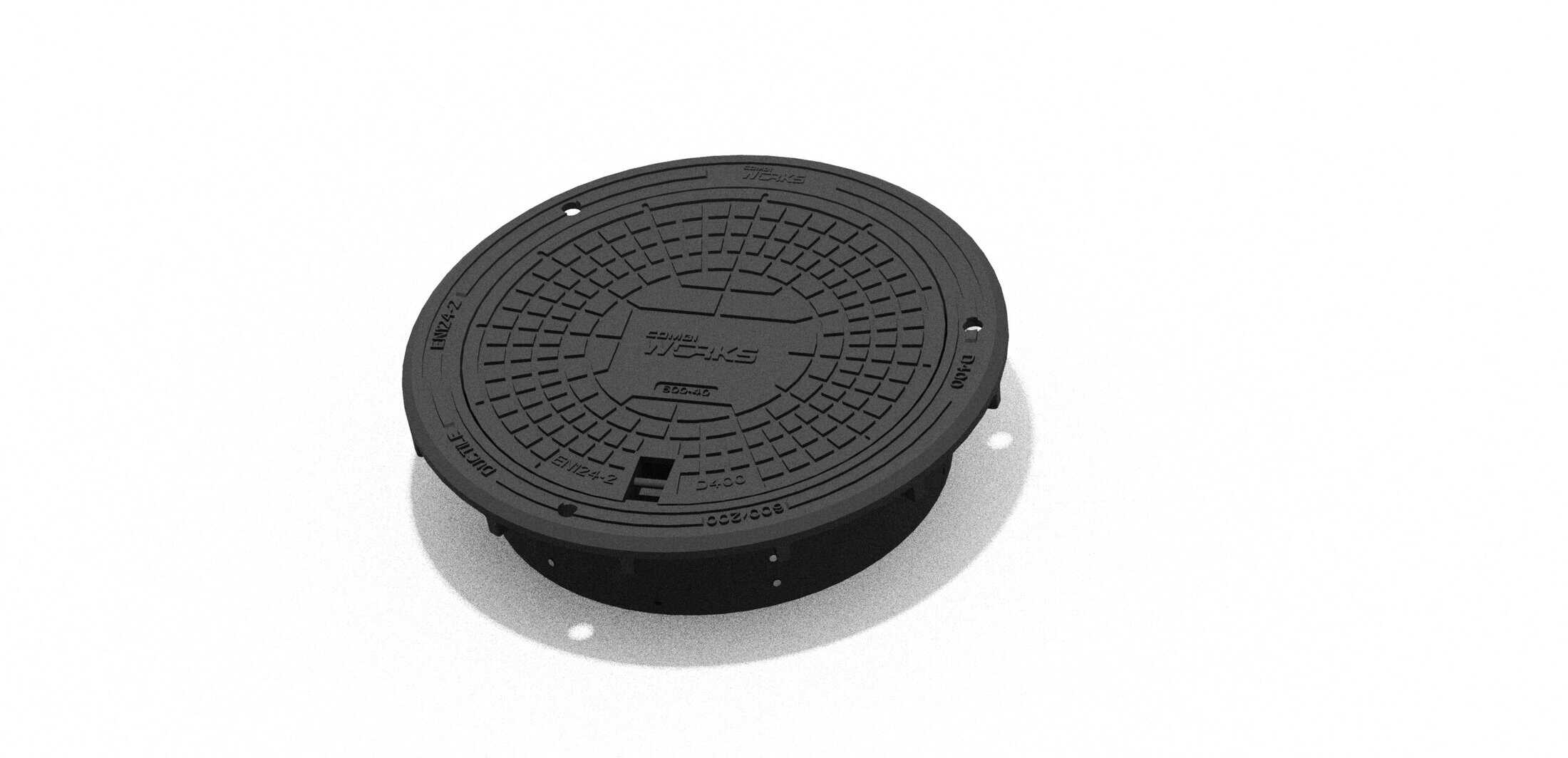

600-series set 3366159-N consists of a floating, round frame 3366167D-N, aluminum dust plate 2005051 and a round blind cover 3366077-N. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and grey cast iron EN-GJL-200 is classified under Load Class D400.

Aluminum dust plate can be locked with a padlock to add safety and prevent unauthorized persons to access the well beneath.

Cover can be opened using the magnet lifter CW1600.

Typical applications are data centers, military sites and others where extra safety is required.

Specifications:
Product code:
3366159-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7 / Grey Cast EN-GJL-200

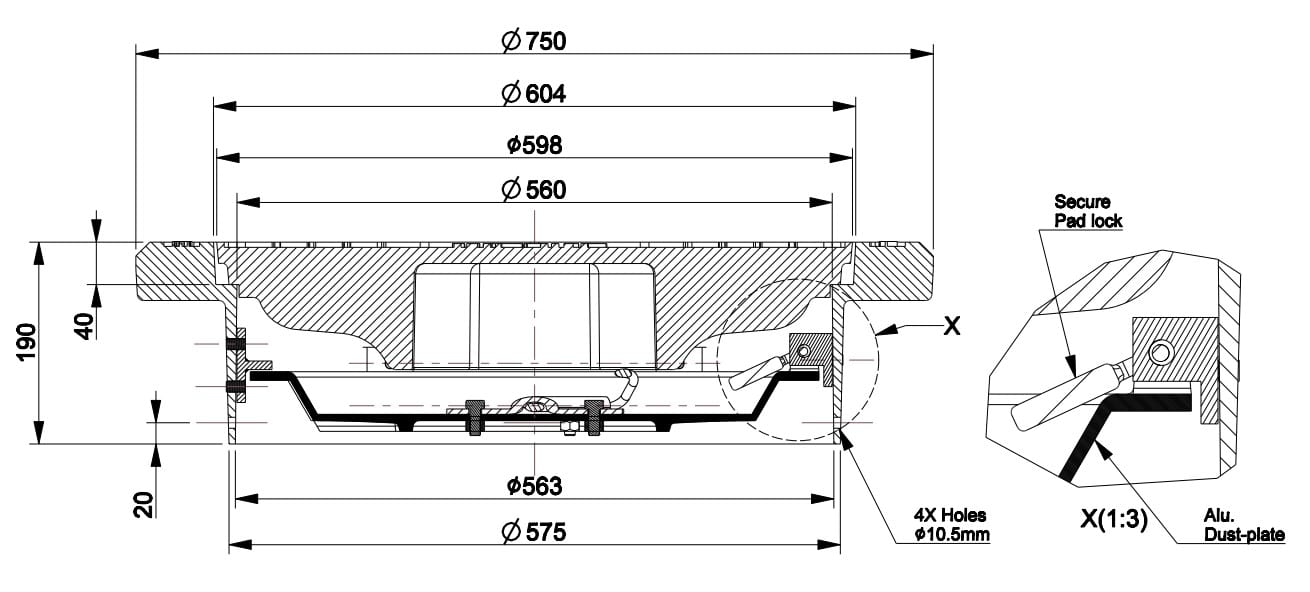

measurements:
Weight:
121
kg
Max height:
190
mm
diameter:
750
mm
Seating depth:
40
mm
Frame opening:
560
mm
