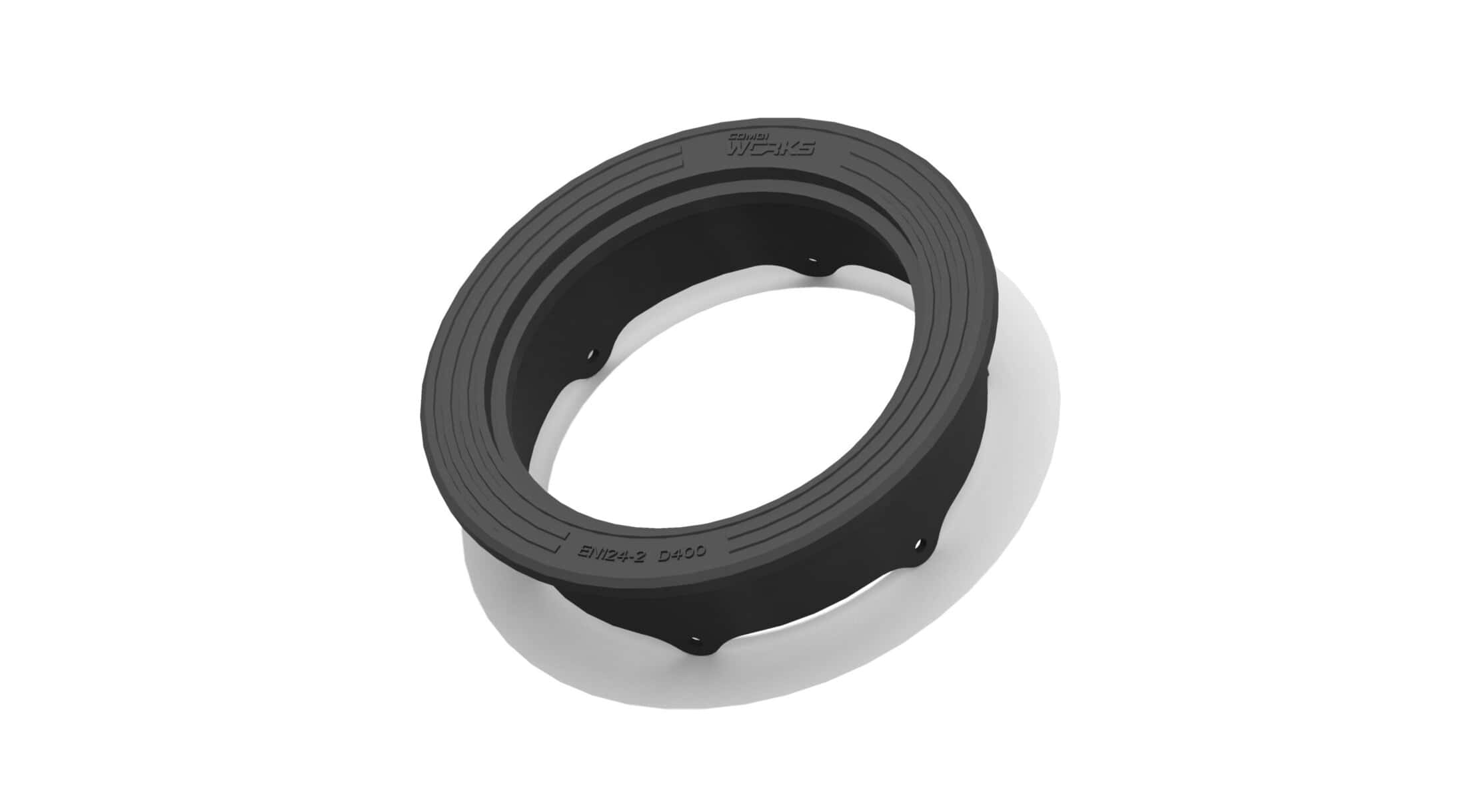

Manhole cover

500 HD frame

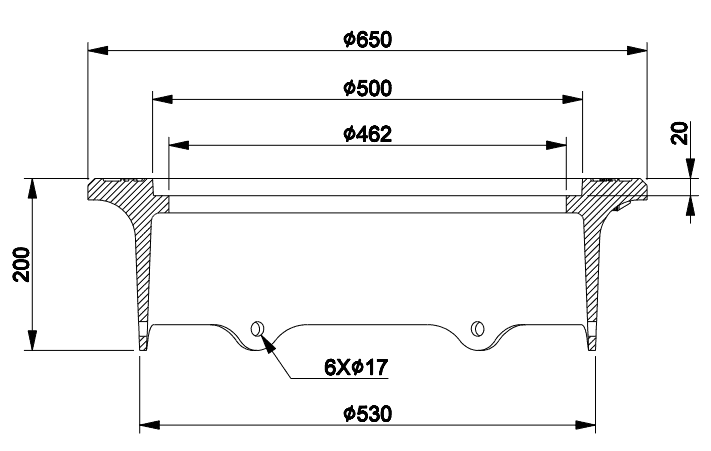

500-series Heavy Duty frame for non-lockable cover or grating

Specifications:

Product code:

3366145-N

Warranty:

2 Years

Product category:

HD

Market:

Estonia, Finland, Latvia, Norway, Sweden

Product type:

Frame

Locking mechanism:

————

EN load class:

D400

Weight:

64 kg

Width:

————

mm

Max height:

200 mm

Seating depth:

20 mm

Lenght:

————

mm

Frame opening:

464 mm

Pipe fit outer diameter:

————

mM

Fit together:

————

Product set:

————

Material marks:

Grey Cast EN-GJL-200
