Manhole cover

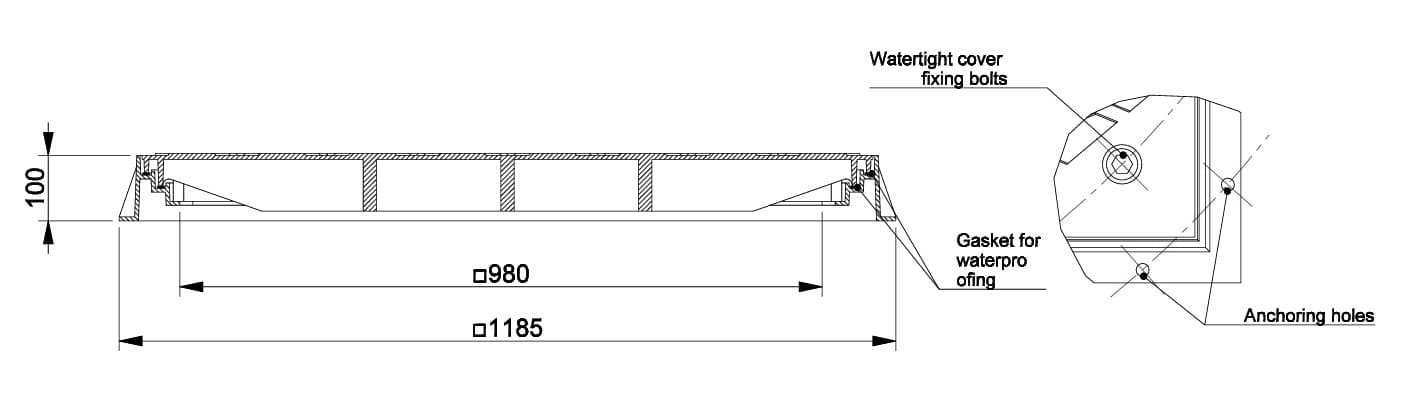

1000×1000 Frame and Blind Cover Set

1000×1000 D400 set consists of a fixed, square frame 3366220-N and blind cover 3366221-N. The set is waterproof and designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600 and / or lifting hooks CW300.

Typical applications are service stations, industrial buildings, data centers, cable wells etc.

Specifications:
Product code:
3366220/221-N
Warranty:
2
Years
Product category:
Normal, Waterproof
Market:
Estonia, Finland, Germany, Latvia, Norway, Sweden, Switzerland
Product type:
Set
Locking mechanism:
Bolts
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7
measurements:
Weight:
210
kg
Width:
1185
mm
Max height:
100
mm
Lenght:
1185
mm
Frame opening:
980
mm
