550/50 jaw frame D400

550/50 jaw frame D400

Specifications:
Product code:
3366018-N
Warranty:
2
Years
Product category:
HD, Normal
Market:
Finland, Norway, Sweden
Product type:
Frame
Locking mechanism:
————
EN load class:
D400
Weight:
132
kg

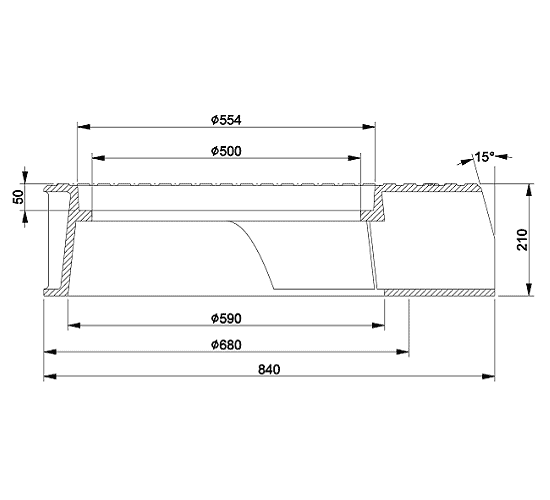

Width:
680
mm
Max height:
210
mm
Seating depth:
50
mm
Lenght:
840
mm
Frame opening:
500
mm
Pipe fit outer diameter:
————
mM
Fit together:
————
Product set:
————
Material marks:
Grey Cast EN-GJL-200
