Jaw frame
550/50 jaw frame and blind cover D400 EST version

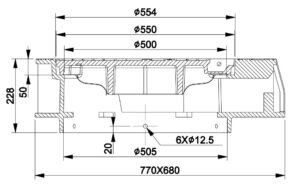

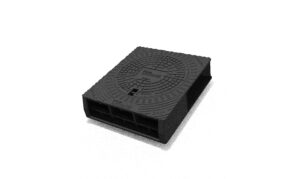

550/50 D400 3366205/021-N consists of a rectagular jaw frame 3366205-N and blind cover 3366021-N. The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.
Cover can be opened using a magnetic lifter CW1600. The frame is compatible with DN500 mm telescope pipe.
Typical application is along the curb stone on a pedestrian way.
Specifications:
Product code:
3366205/021-N
Warranty:
2
Years
Product category:
HD, Normal
Market:
Estonia, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
166
kg
Width:
680
mm
Max height:
228
mm
Seating depth:
50
mm
Lenght:
770
mm
Frame opening:
500
mm
