Manhole cover

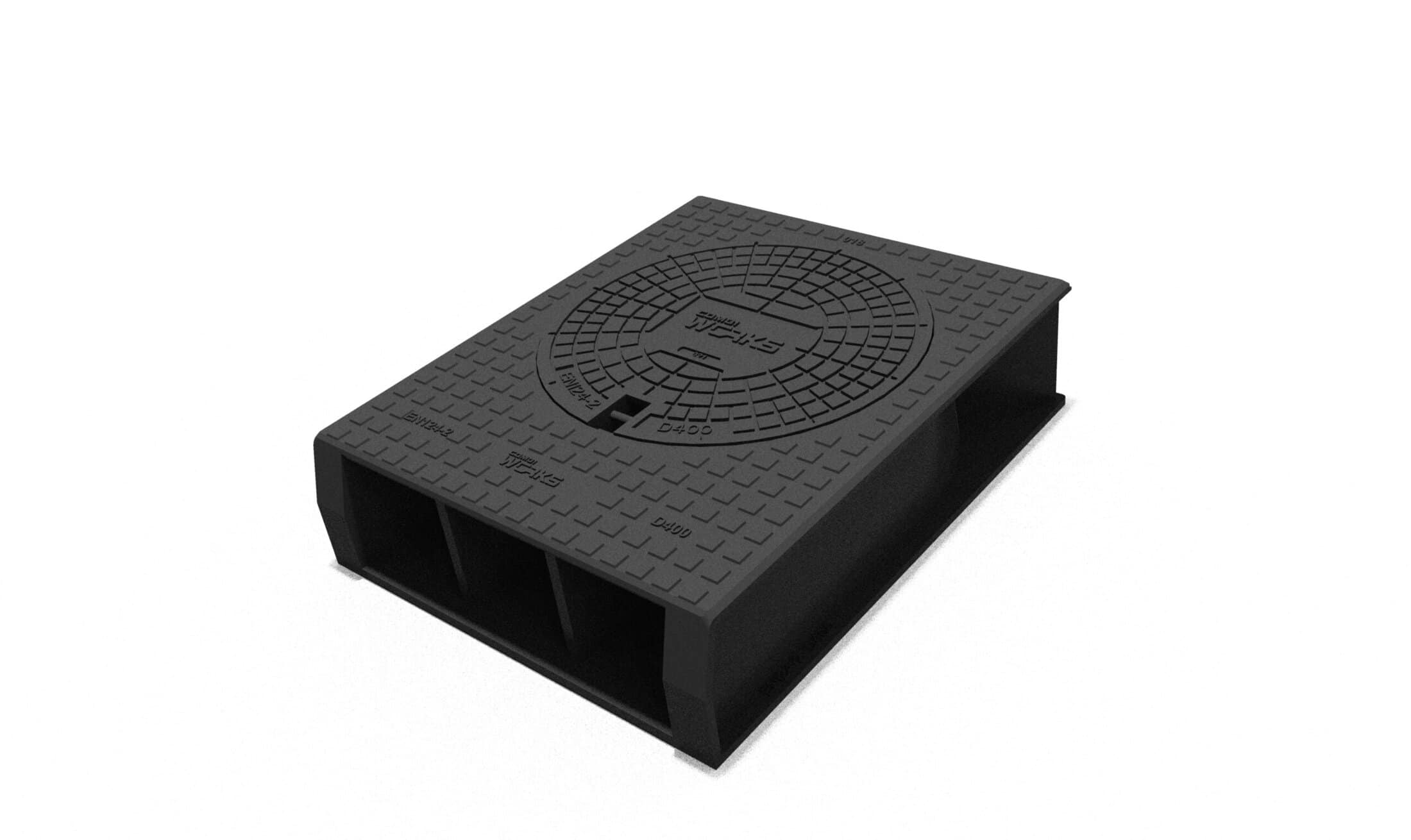

550/50 jaw frame and blind cover D400

550/50 D400 3366018/21-N consists of a rectagular jaw frame 3366018-N and blind cover 3366021-N. The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600.

Typical application is along the curb stone on a pedestrian way.

Specifications:
Product code:
3366018/21-N
Warranty:
2
Years
Product category:
HD, Normal
Market:
Finland, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200

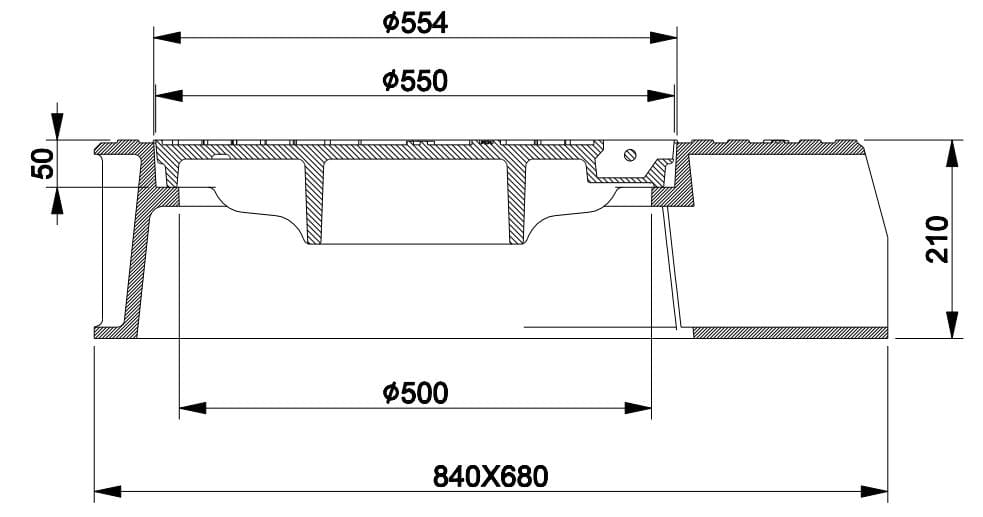

measurements:
Weight:
196
kg
Width:
mm
Max height:
210
mm
Seating depth:
50
mm
Lenght:
840
mm
Frame opening:
500
mm
