Manhole cover
315 frame

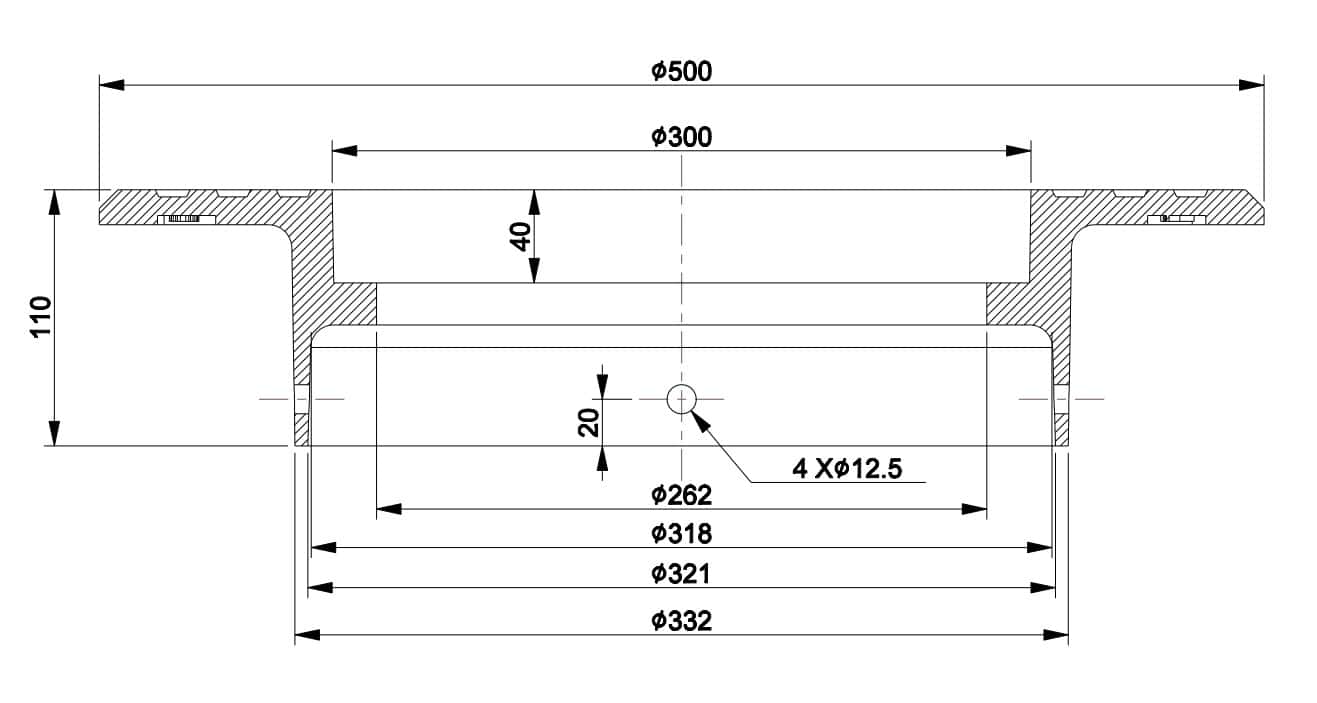

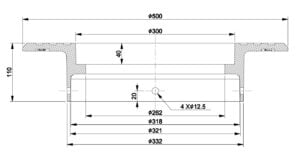

315-series D400 3366040-N is a floating type, round frame for round blind cover 3366041-N or grating 3366042-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

The frame is compatible with DN315 mm telescope pipe.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366040-N
Warranty:
2
Years
Product category:
ASTV, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Frame
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
22
kg
Max height:
110
mm
diameter:
500
mm
Seating depth:
40
mm
Frame opening:
262
mm
