Manhole cover

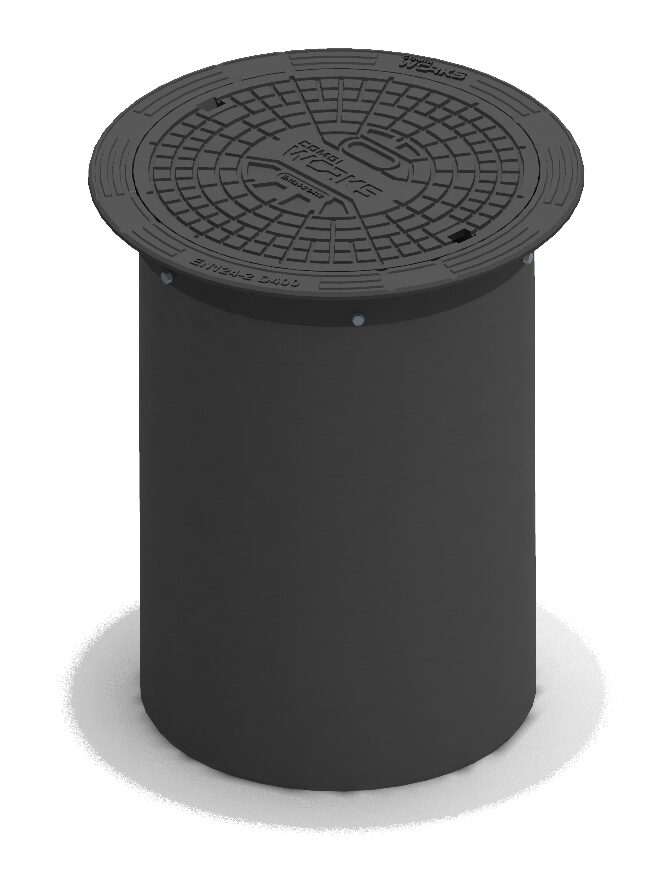

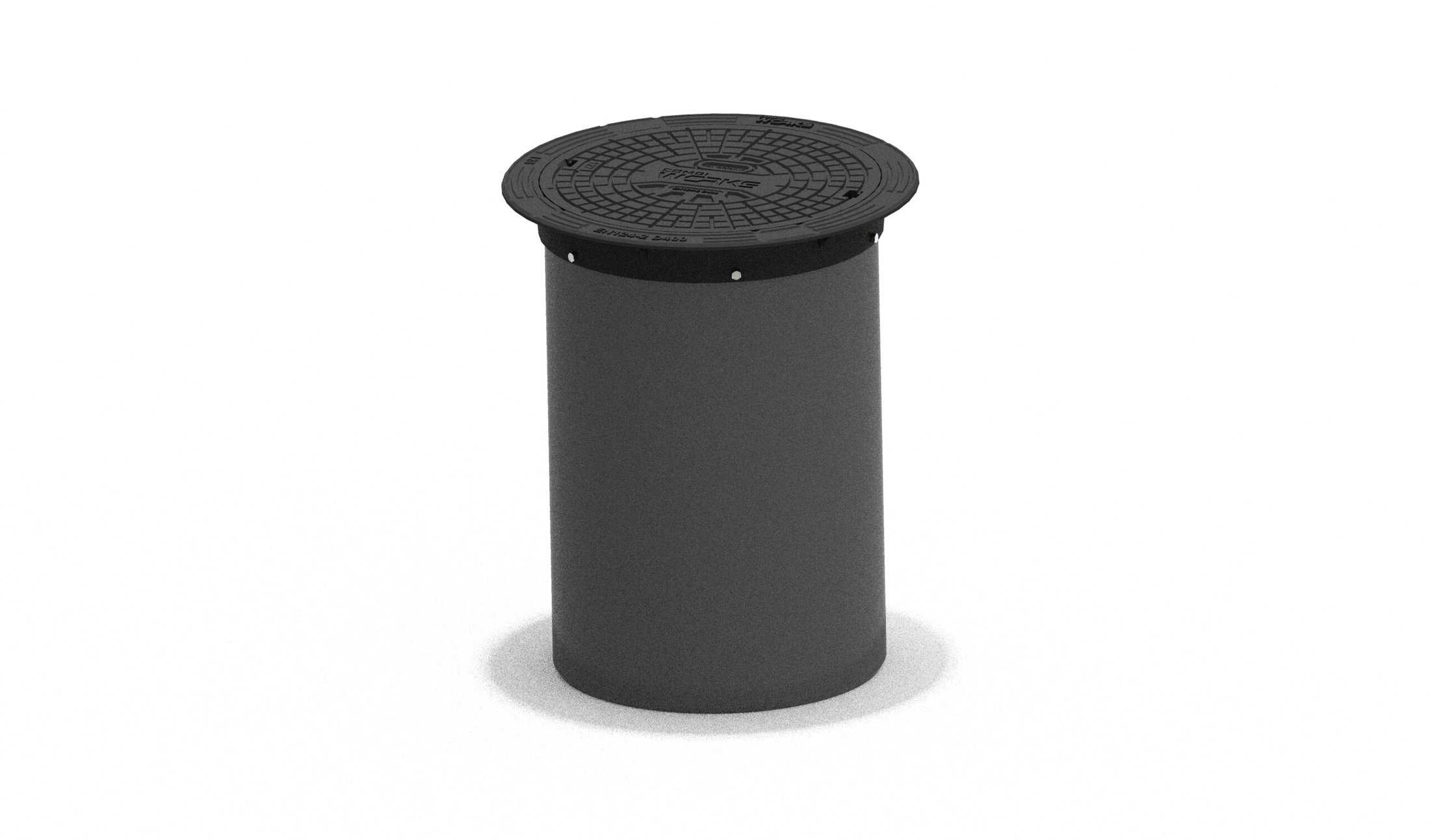

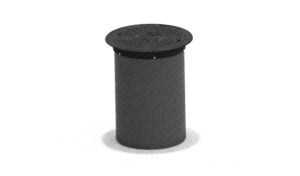

630 telescope set SN2 with Normal round frame and blind manhole cover

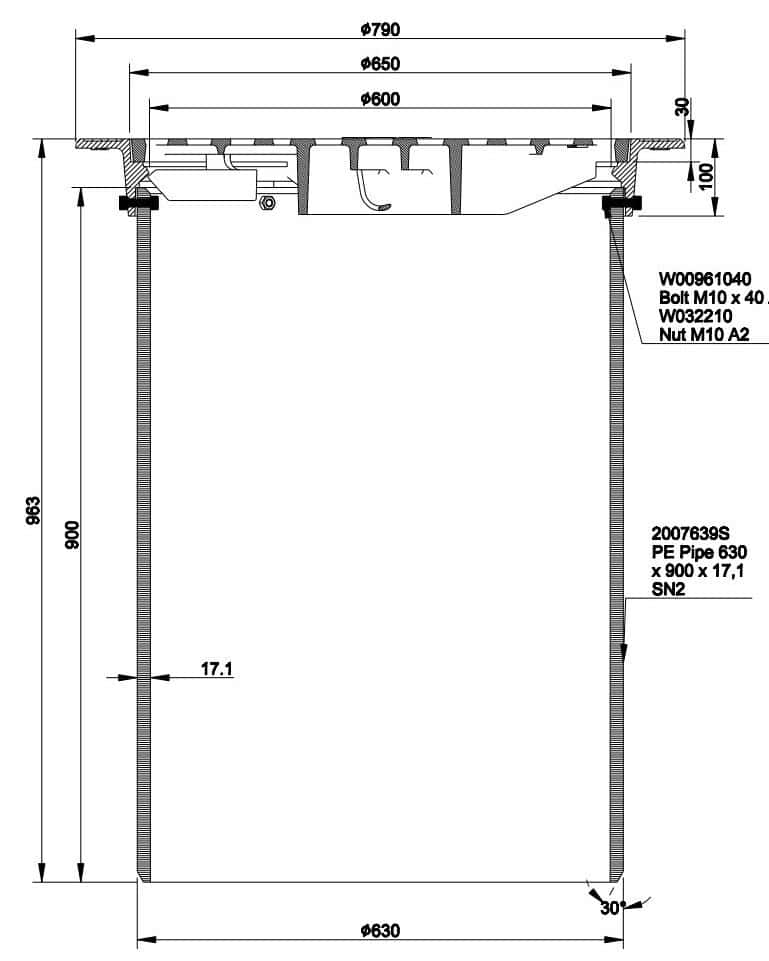

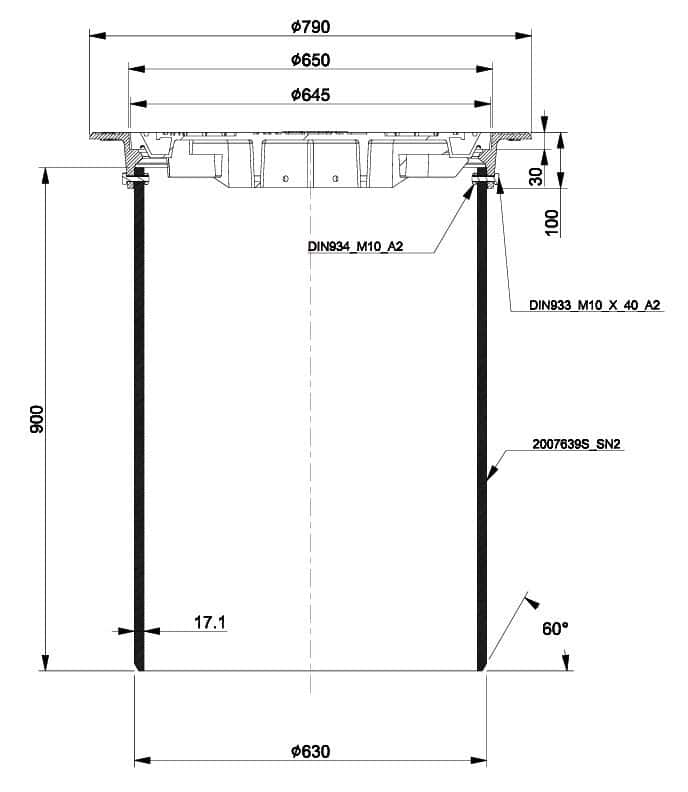

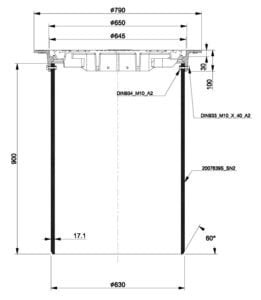

630-series Normal Telescope set 2006308C consists of a floating manhole cover 3366126/7-N set, DN630 x 17,1mm x 0,9m SN2 telescope pipe and M10 bolts and nuts. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015 . Frame and blind cover are manufactured from ductile iron EN-GJS-500/7 and classified under Load Class D400, pipe from PE and bolts and nuts from A2 stainless steel.
Cover can be opened using opening tool 2004001.
Typical applications are public roads, inner streets, car parks.
Specifications:
Product code:
2006308C
Warranty:
2
Years
Product category:
Normal, SN2
Market:
Estonia
Product type:
Set
Locking mechanism:
Spring locks
EN load class:
D400
Material marks:
Iron and plastic telescope
measurements:
Weight:
103
kg
Max height:
963
mm
diameter:
790
mm
Seating depth:
30
mm
Frame opening:
600
mm
Pipe fit outer diameter:
630
mM
How to: Open a 630- and 800-series manhole cover
This video shows how to open a 630- & 800- series lockable manhole cover using either an opening tool or a crow bar. It also demonstrate how to clean and close the manhole cover.
