Manhole cover

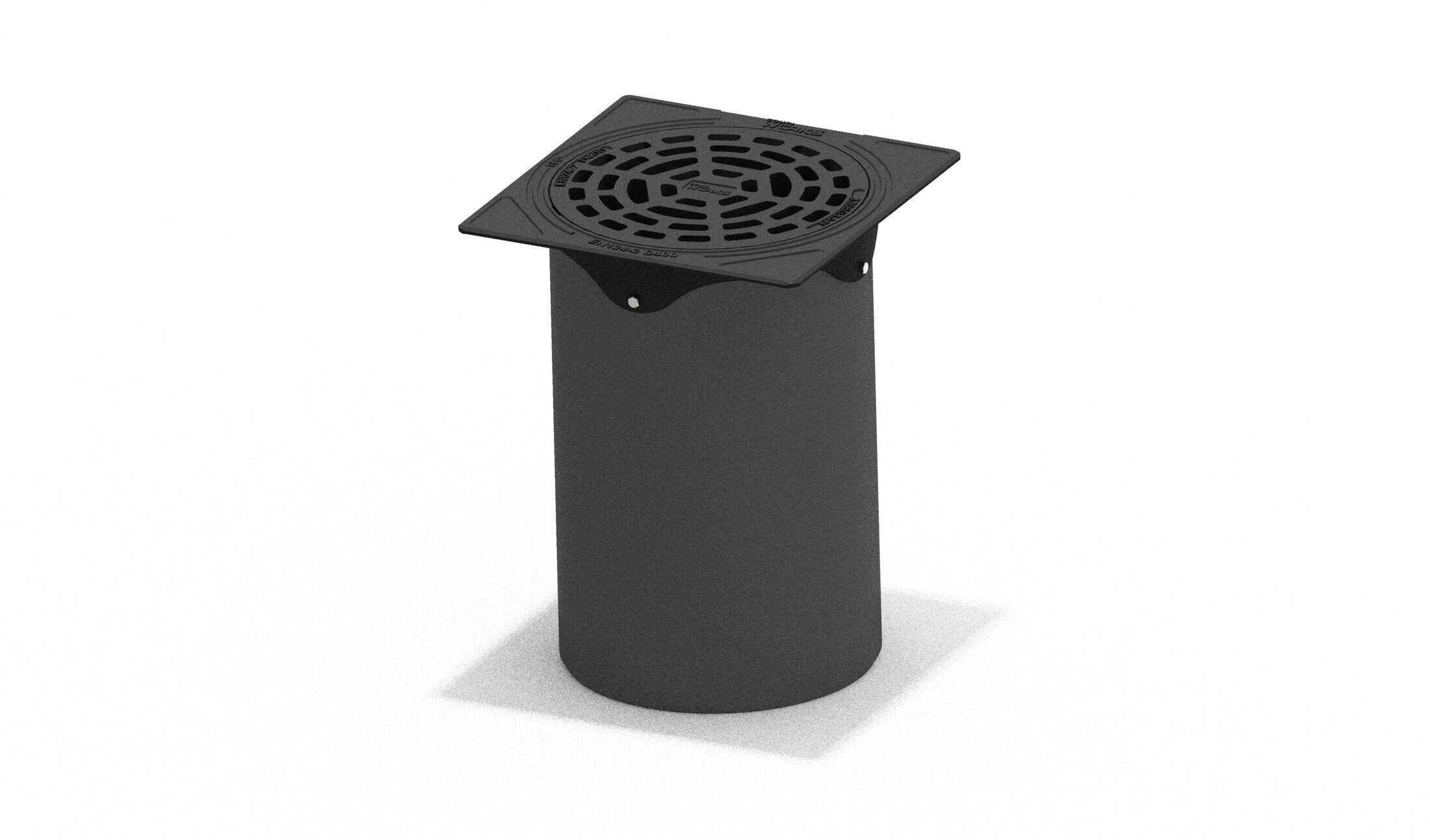

500 telescope set SN2 with square frame and grating

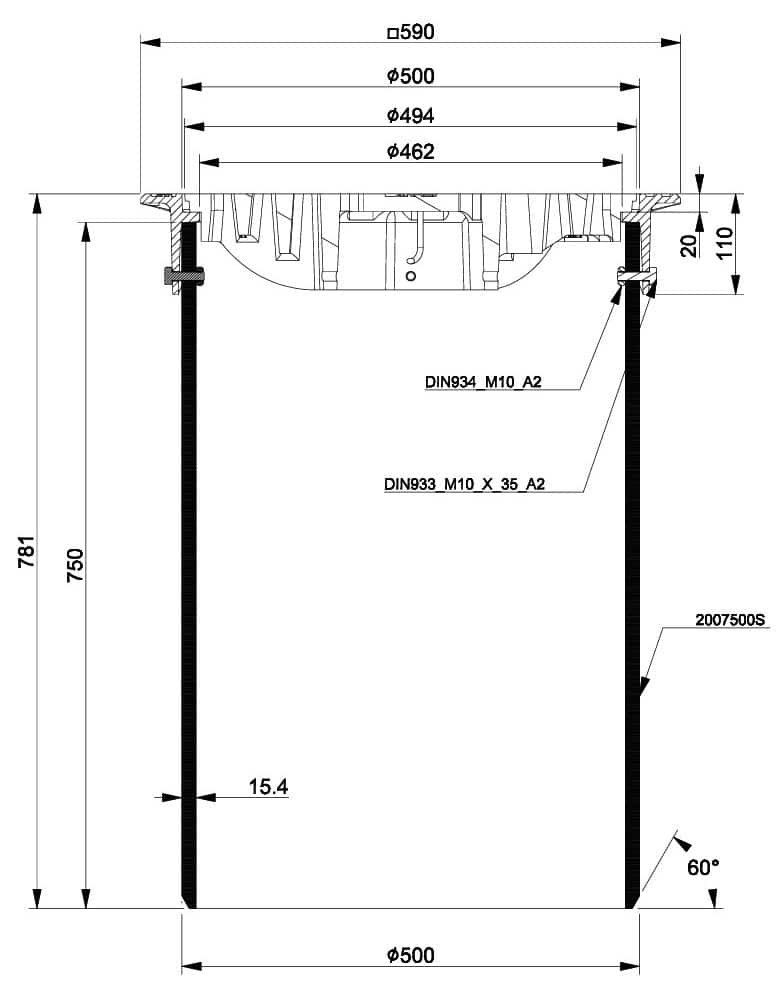

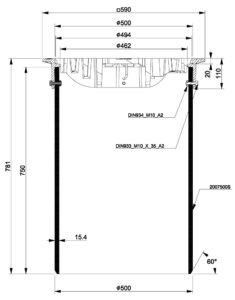

500-series Normal Telescope set 2005038G consists of a floating manhole cover 3366186/33-N set, DN500 x 15,3mm x 0,75m SN2 telescope pipe and M10 bolts and nuts. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015. Frame is manufactured from ductile iron EN-GJS-500/7 and grating grey cast iron EN-GJL-200 and classified under Load Class D400, pipe is from PE and bolts and nuts from A2 stainless steel.

Grating can be opened using a magnetic lifter CW1600.

Typical applications are inner streets, car parks, pedestrian zones which are covered by paving stones.

Specifications:
Product code:
2005038G
Warranty:
2
Years
Product category:
Normal, SN2
Market:
Estonia
Product type:
Set
EN load class:
D400
Material marks:
Iron and plastic telescope
measurements:
Weight:
84
kg
Width:
mm
Max height:
785
mm
Seating depth:
20
mm
Lenght:
590
mm
Frame opening:
462
mm
