Manhole cover
315 Telescope set 50 cm Optimized lockable frame and grating

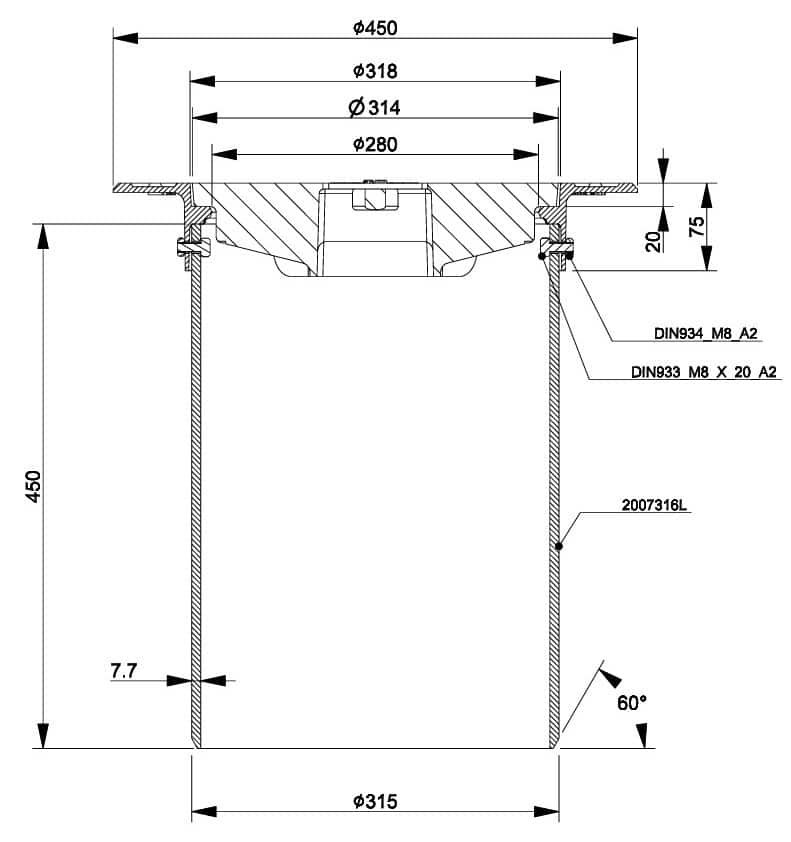

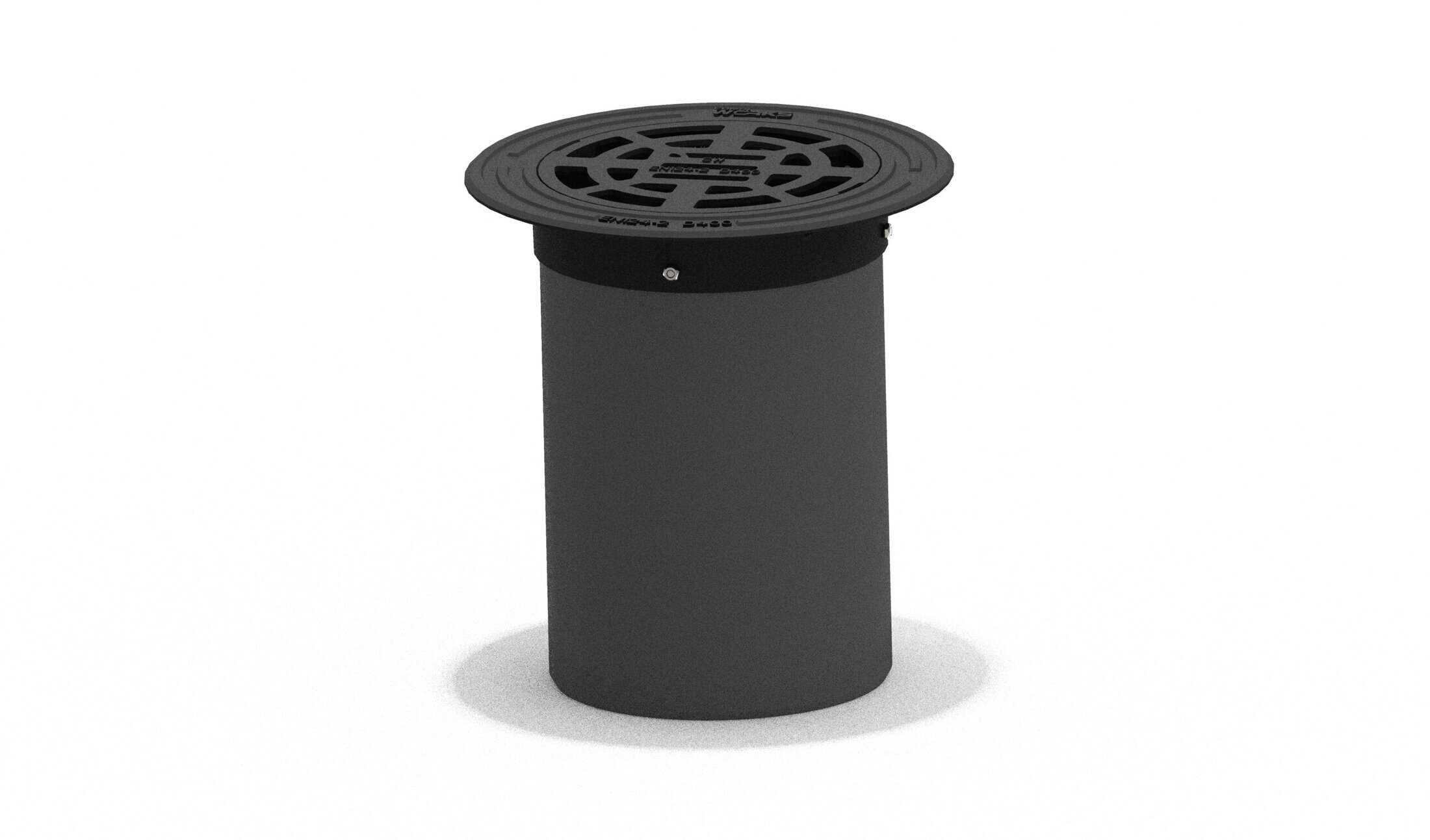

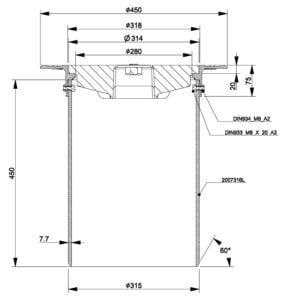

315-series Telescope set 2003185G-N consists of a floating, round frame 3366131-N, round grating 3366133-N and a 315/450 mm telescope pipe. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, frame and grating are manufactured from ductile iron EN-GJS-500/7 and classified under Load Class D400.

Grating can be opened using a crow bar.

Typical applications are public roads, inners streets, car parks.

Specifications:
Product code:
2003185G-N
Warranty:
1
Years
Product category:
Optimized, SN1
Market:
Finland, Norway, Sweden
Product type:
Set
Locking mechanism:
Spring locks
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7, Iron and plastic telescope
measurements:
Weight:
18
kg
Max height:
485
mm
diameter:
450
mm
Seating depth:
20
mm
Frame opening:
280
mm
