Manhole cover
160/200 Telescope set 80 cm frame and blind cover

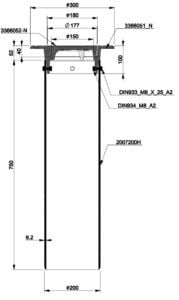

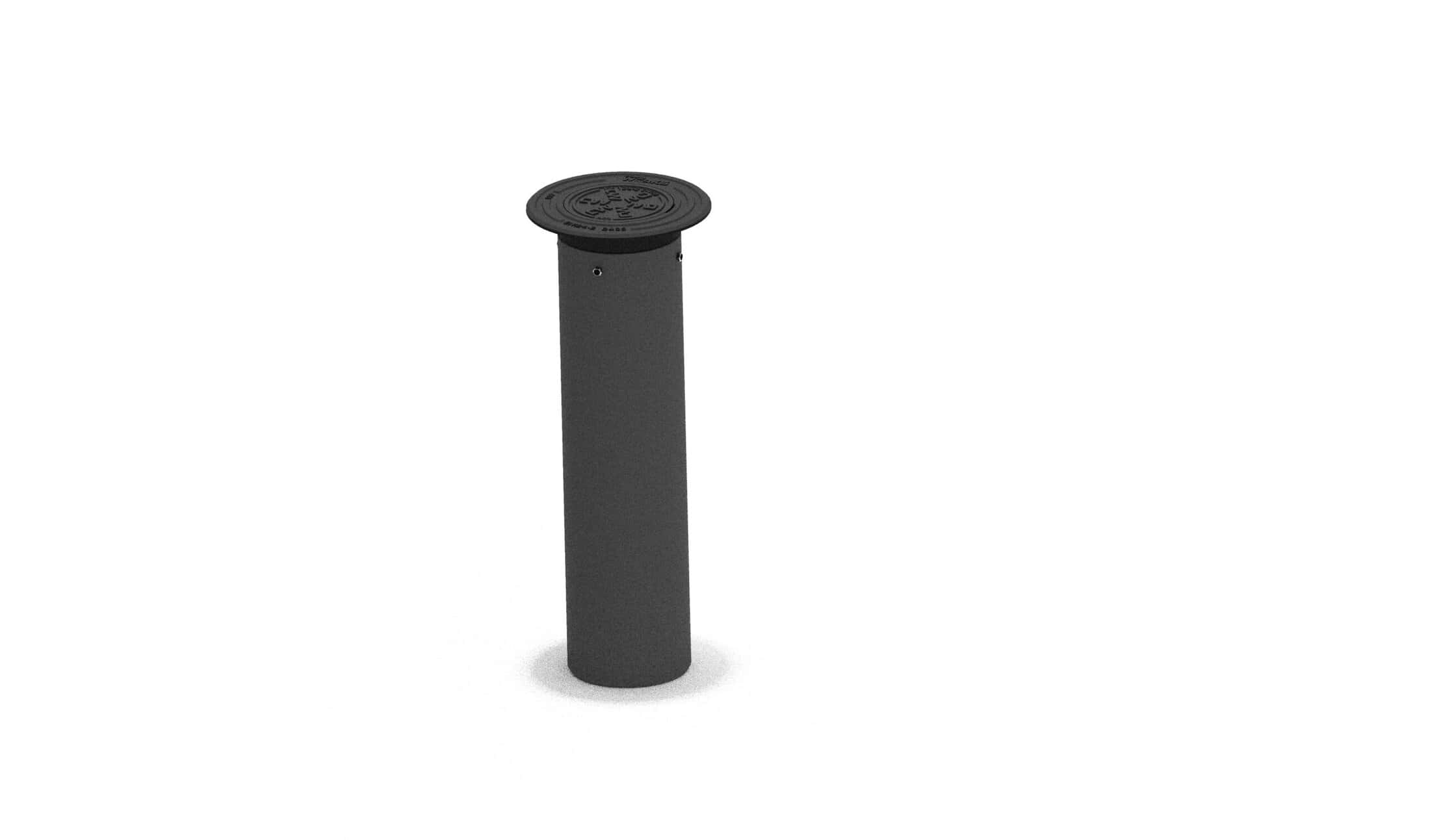

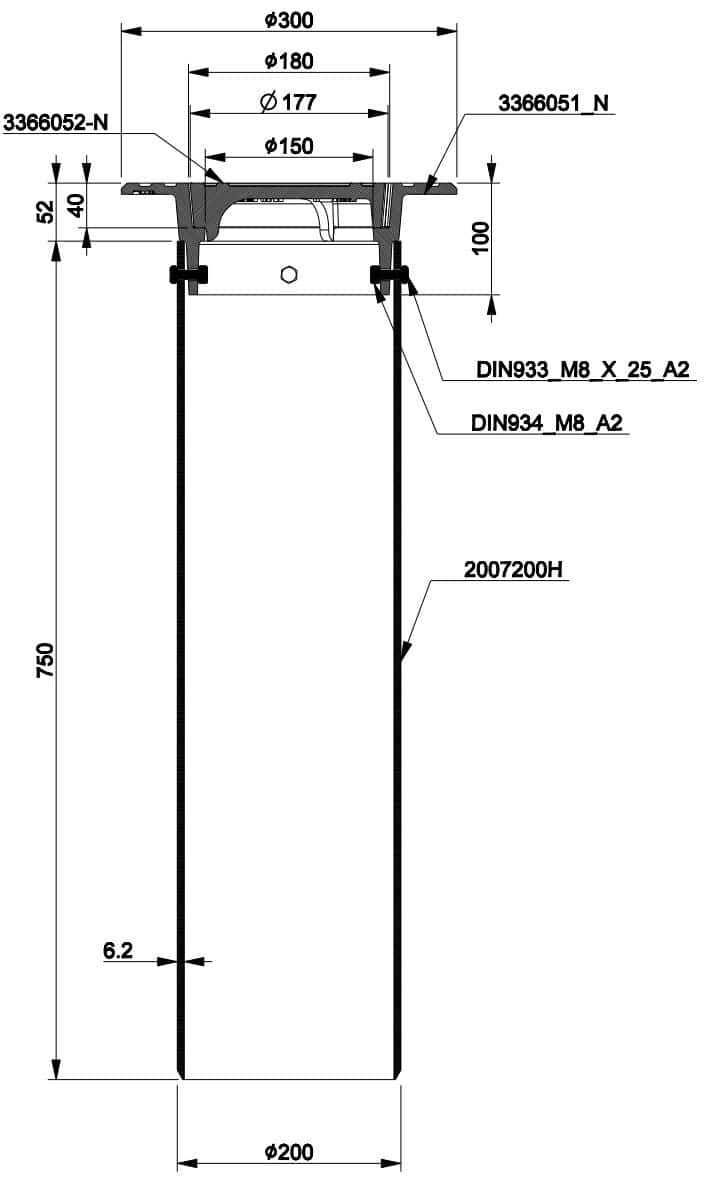

160/200-series Telescope set 2002008C-N consists of a floating, round frame 3366051-N, round blind cover 3366052-N and a 200/750 mm telescope pipe. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, frame and blind cover are manufactured from ductile iron EN-GJS-500/7 and classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600.

Typical applications are public roads, inner streets, car parks.

Specifications:
Product code:
2002008C-N
Warranty:
2
Years
Product category:
Normal, SN1
Market:
Finland, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7, Iron and plastic telescope
measurements:
Weight:
14
kg
Max height:
802
mm
diameter:
300
mm
Seating depth:
40
mm
Frame opening:
180
mm
Pipe fit outer diameter:
160
mM
