Manhole cover
160 telescope set SN2 Normal blind cover

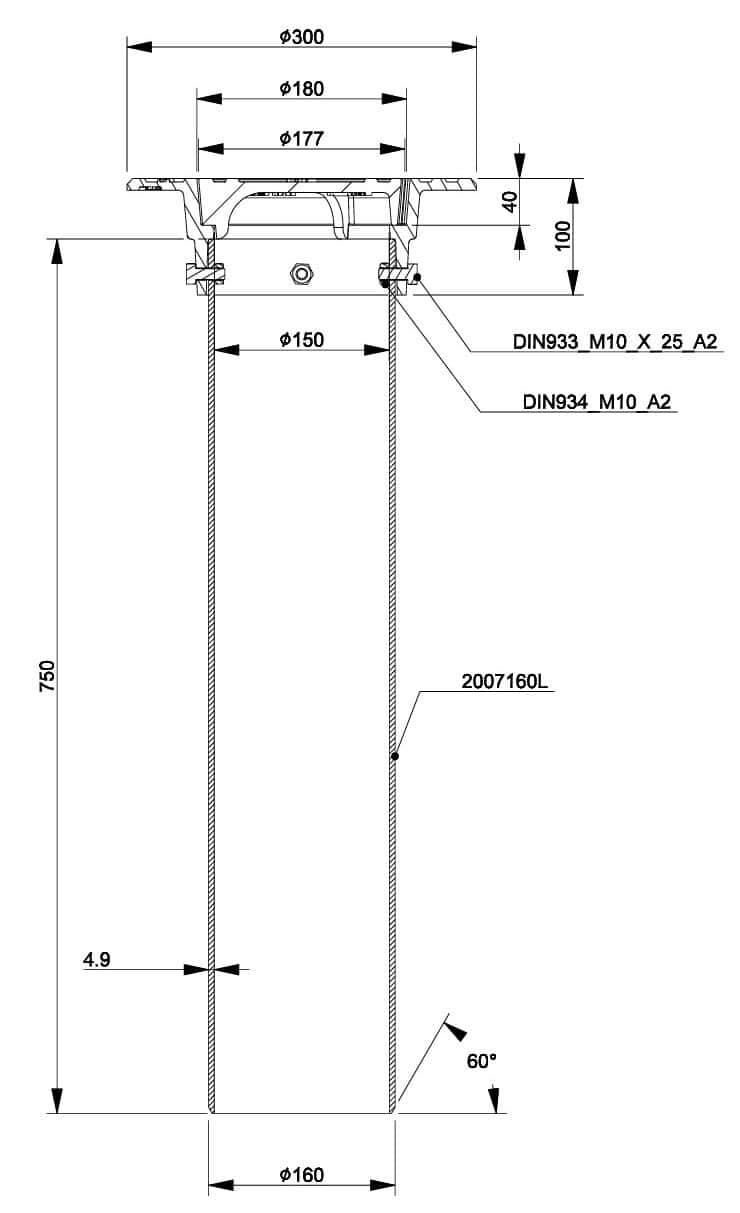

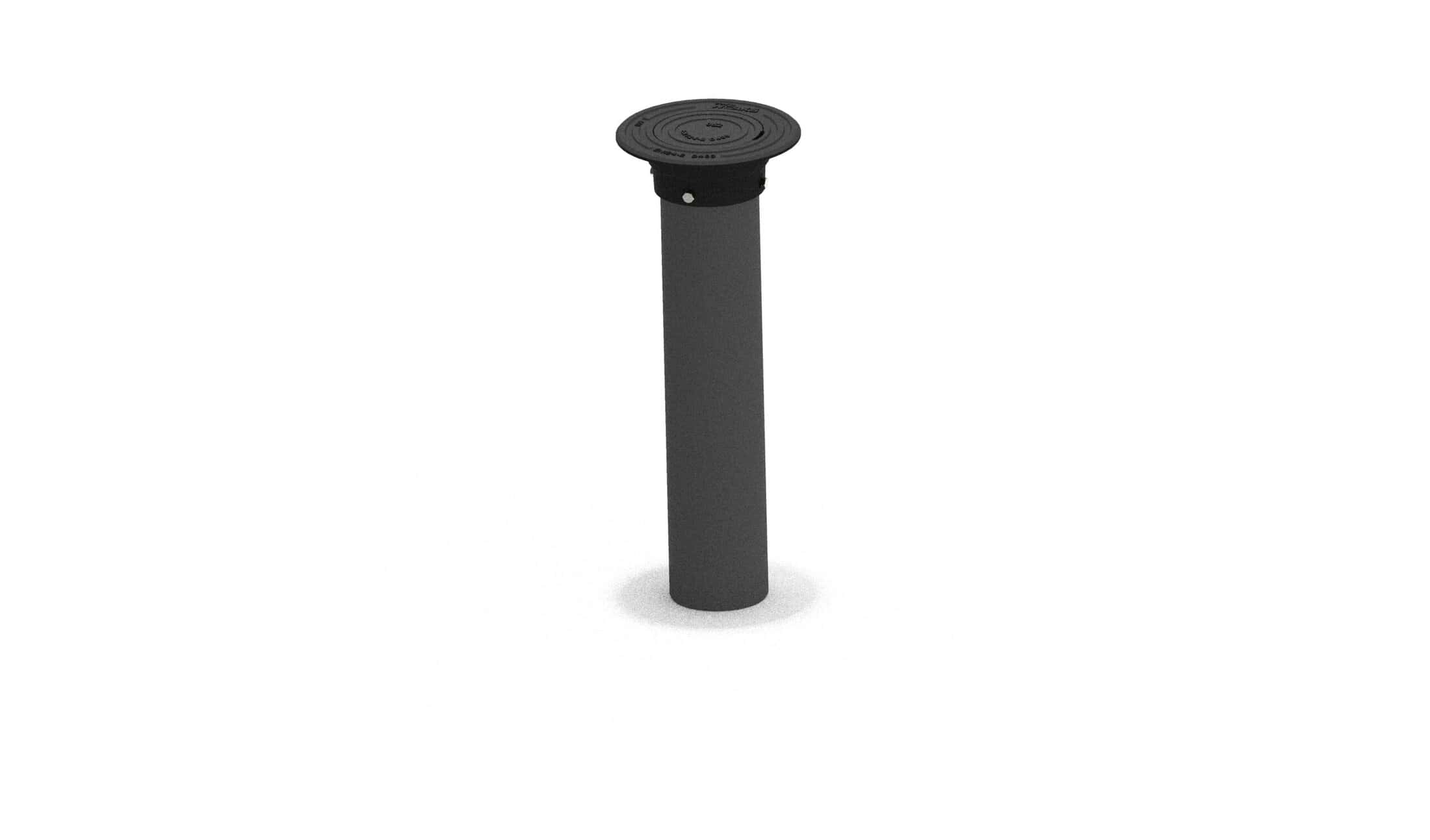

160-series Normal Telescope set 2001608C consists of a floating, round frame 3366051/2-N manhole cover set, DN160 x 4,9mm x 0,75m SN2 telescope pipe and M10 bolts and nuts. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, frame and blind cover are manufactured from ductile iron EN-GJS-500/7 and classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600.

Typical applications are public roads, inner streets, car parks.

Specifications:
Product code:
2001608C
Warranty:
2
Years
Product category:
Normal, SN2
Market:
Estonia
Product type:
Set
EN load class:
D400
Material marks:
Iron and plastic telescope
measurements:
Weight:
12
kg
Max height:
802
mm
diameter:
300
mm
Seating depth:
40
mm
Frame opening:
150
mm
