Manhole cover
800 lockable round grating

800-series round lockable grating 3366180-N. The grating is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

Blind cover is compatible with a round lockable frame 3366178-N.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366180-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Grate
Locking mechanism:
Spring locks
EN load class:
E600
Material marks:
Ductile EN-GJS-500/7
measurements:
Weight:
84
kg
Max height:
99
mm

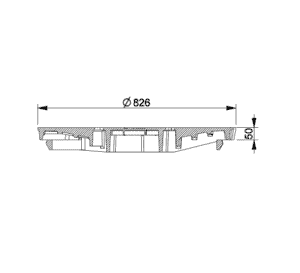

diameter:
826
mm
Seating depth:
50
mm
