Manhole cover
800 lockable round frame for dust plate

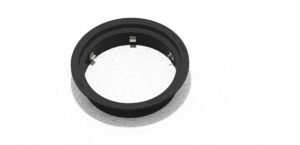

800-series round frame 3366181-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class E600.

Frame is compatible with a round lockable blind cover 3366179-N and aluminum dust plate.

Typical applications are data centers, military sites and others where extra safety is required.

Specifications:
Product code:
3366181-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Frame
Locking mechanism:
Spring locks
EN load class:
E600
Material marks:
Ductile EN-GJS-500/7

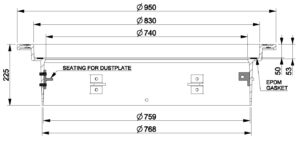

measurements:
Weight:
63
kg
Max height:
225
mm
diameter:
950
mm
Seating depth:
50
mm
Frame opening:
740
mm
