Manhole cover

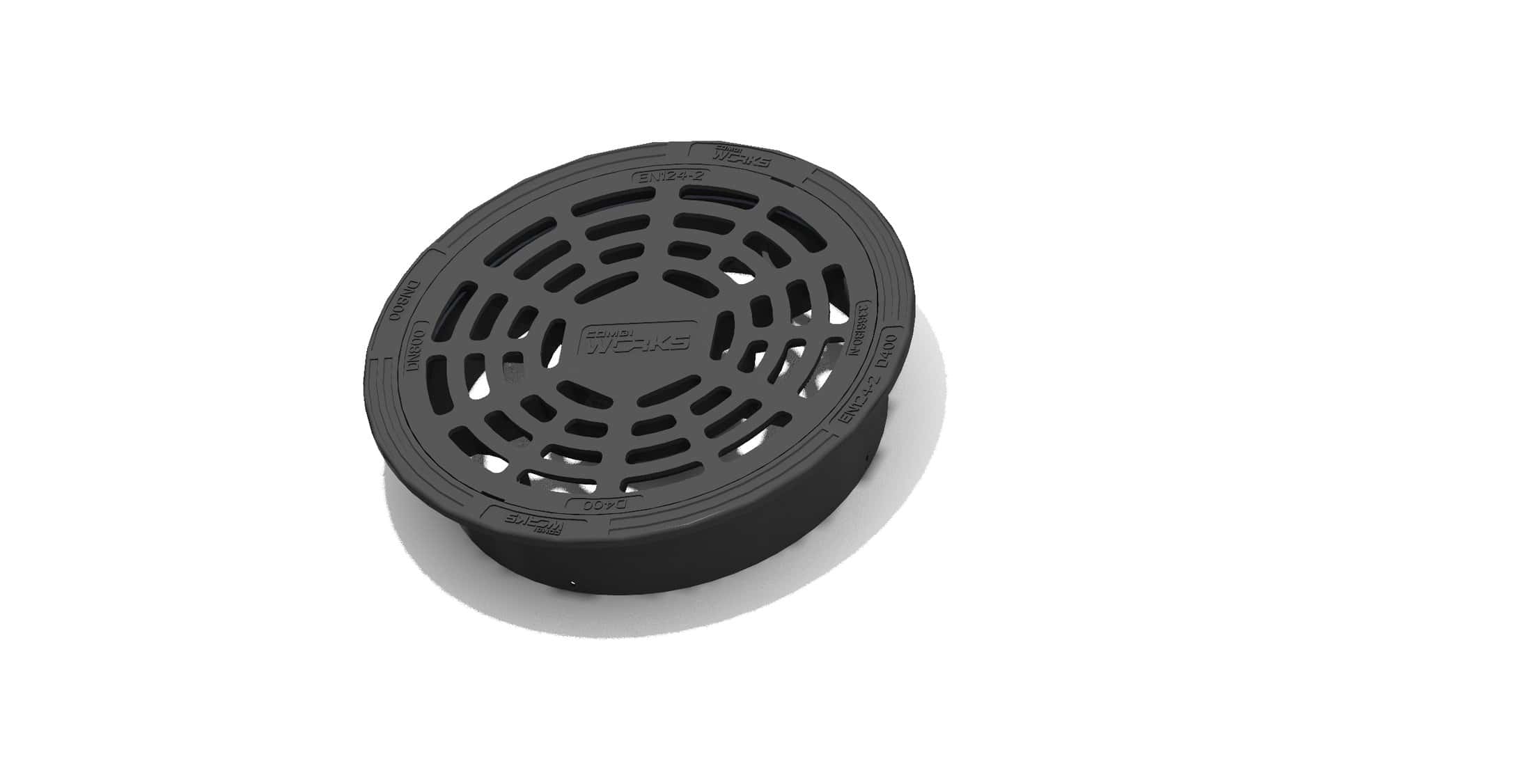

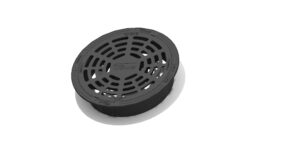

800 lockable round frame and grating

800-series set 3366177-N consists of a floating, round frame 3366178-N and a lockable, round grating 3366180-N. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

Cover can be opened using opening tool.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366177-N
Warranty:
2
Years
Product category:
Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Set
Locking mechanism:
Spring locks
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7

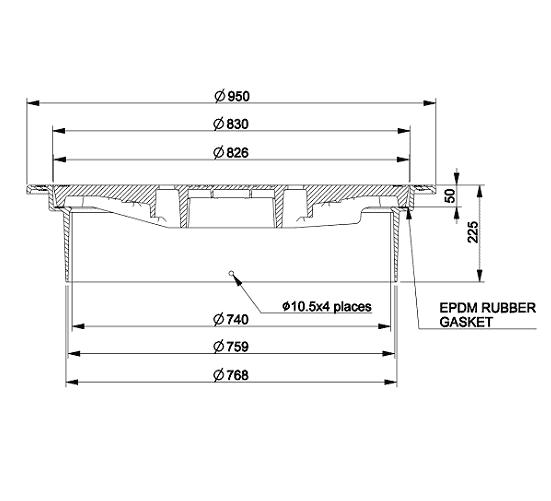

measurements:
Weight:
145
kg
Max height:
225
mm
diameter:
950
mm
Seating depth:
50
mm
Frame opening:
740
mm
