Manhole cover

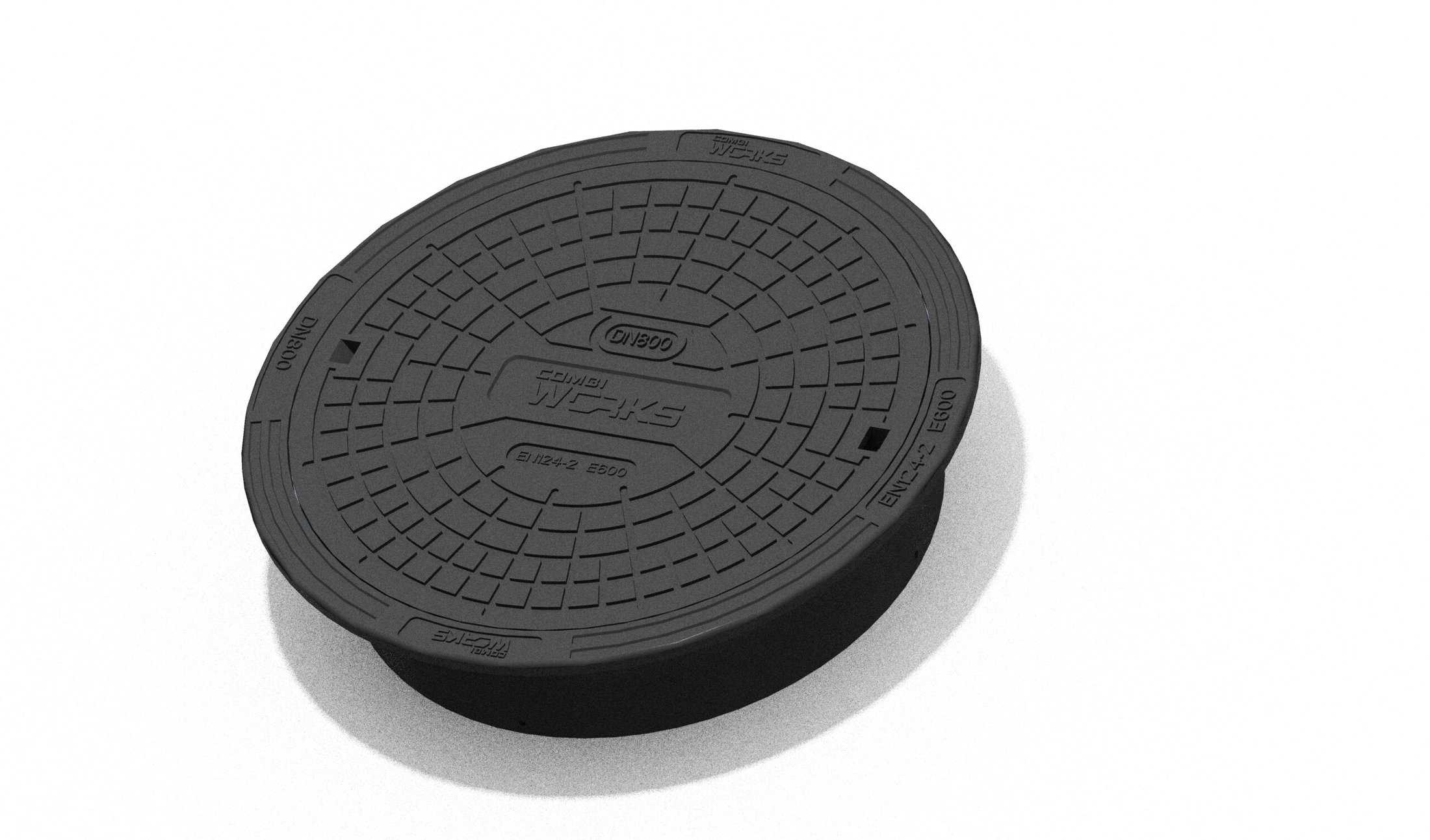

800 lockable round frame and blind cover with extra gasket E600

800-series E600 set 3366080G-N consists of a floating, round frame 3366178-N and a lockable, round blind cover 3366179-N with extra gasket on the outer edge of the cover. The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class E600.

Cover can be opened using opening tool.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366080G-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Set
Locking mechanism:
Spring locks
EN load class:
E600
Material marks:
Ductile EN-GJS-500/7

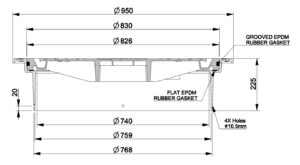

measurements:
Weight:
132
kg
Max height:
225
mm
diameter:
950
mm
Seating depth:
50
mm
Frame opening:
740
mm
