Manhole cover

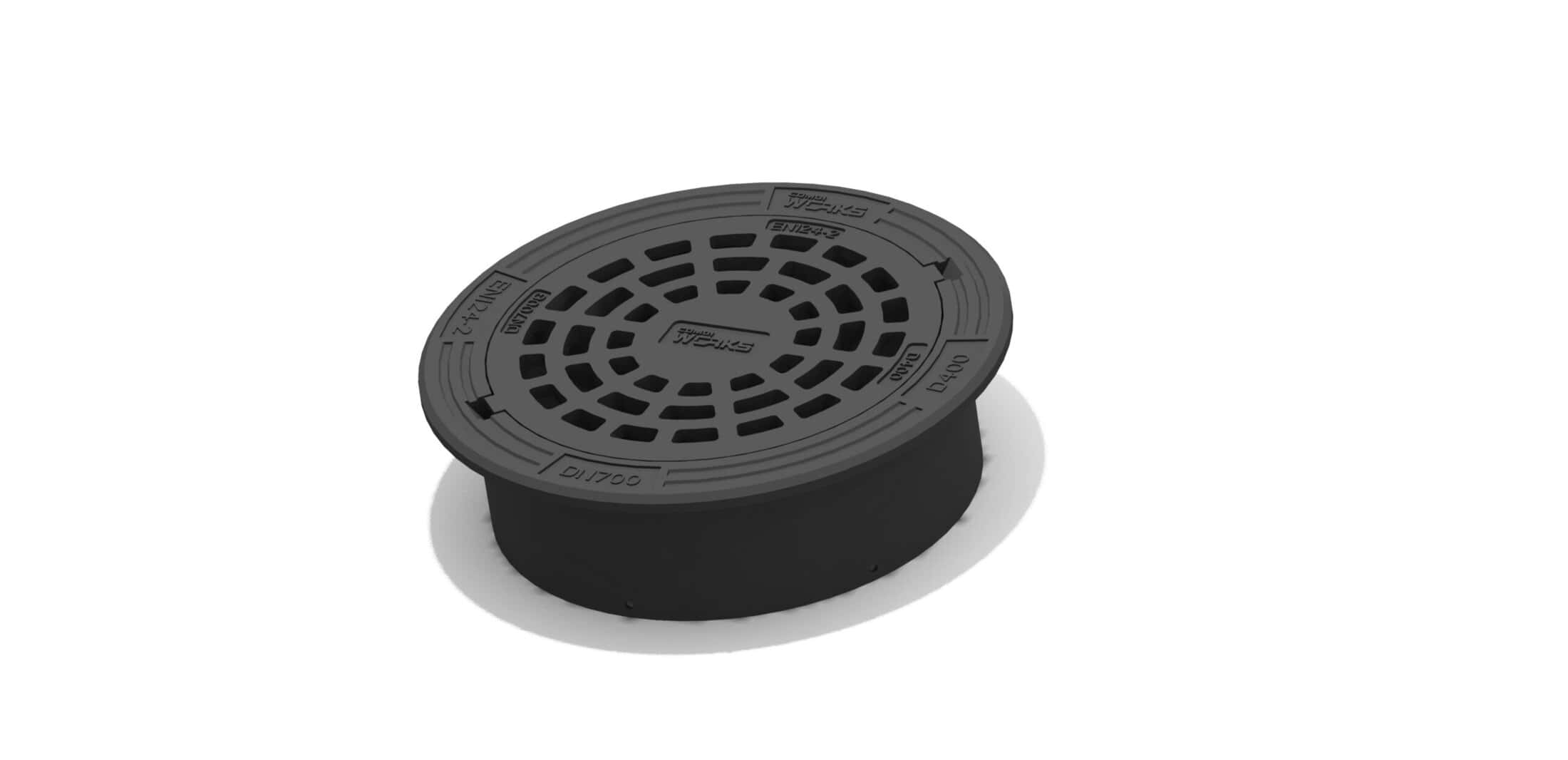

700 frame with grating manhole cover set

700-series 3366176-N manhole cover set consists of a floating, round frame 3366172-N and non-lockable grating 3366174-N. The set is designed for Nordic conditions, mainly for concrate chambers, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Grating can be opened using a magnet lifter CW1600 or crowbar.

Typical applications are public roads and parking areas.

Specifications:
Product code:
3366176-N
Warranty:
2
Years
Product category:
ASTV
Market:
Estonia
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
154
kg
Max height:
248
mm
diameter:
834
mm
Seating depth:
40
mm
Frame opening:
600
mm
