Manhole cover
600 lockable round frame for dust plate

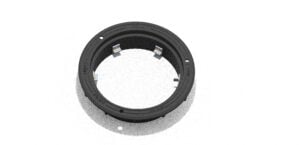

600-series round frame 3366167D-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

Frame is compatible with a round blind cover 3366077-N and aluminum dust plate 2005051.

Typical applications are data centers, military sites and others where extra safety is required.

Specifications:
Product code:
3366167D-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Frame
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7

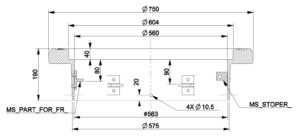

measurements:
Weight:
51
kg
Max height:
190
mm
diameter:
750
mm
Seating depth:
40
mm
Frame opening:
560
mm
