Manhole cover
600/40 round frame and grating

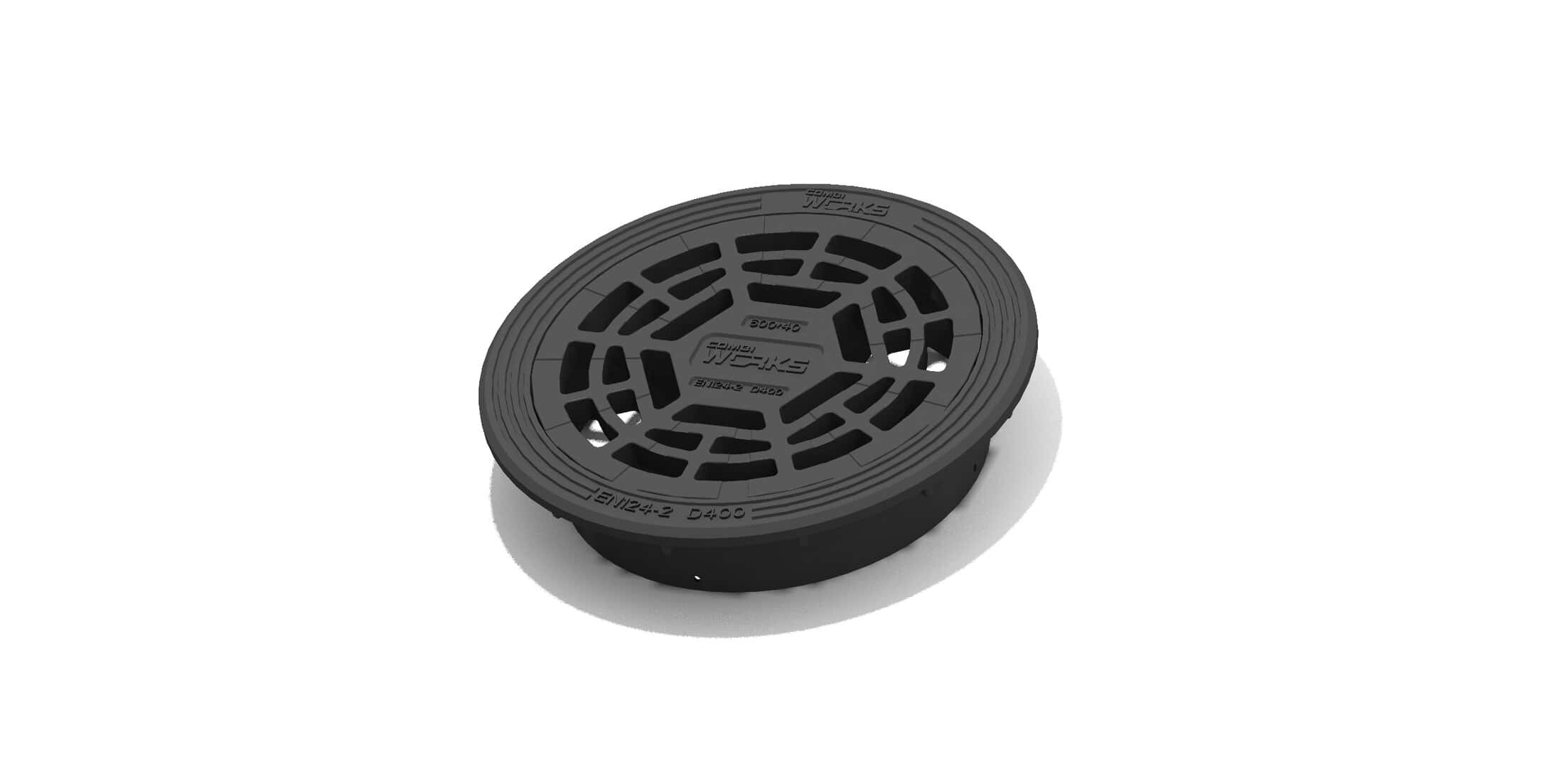

600/40 D400 3366076/78-N consists of a floating, round frame 3366076-N and grating 3366078-N. The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600. The set assembly is compatible with 560 mm and 630 mm telescope pipe.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366076/78-N
Warranty:
2
Years
Product category:
District heating, HD, Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
98
kg
Max height:
170
mm
diameter:
744
mm
Seating depth:
40
mm
Frame opening:
560
mm
