Manhole cover

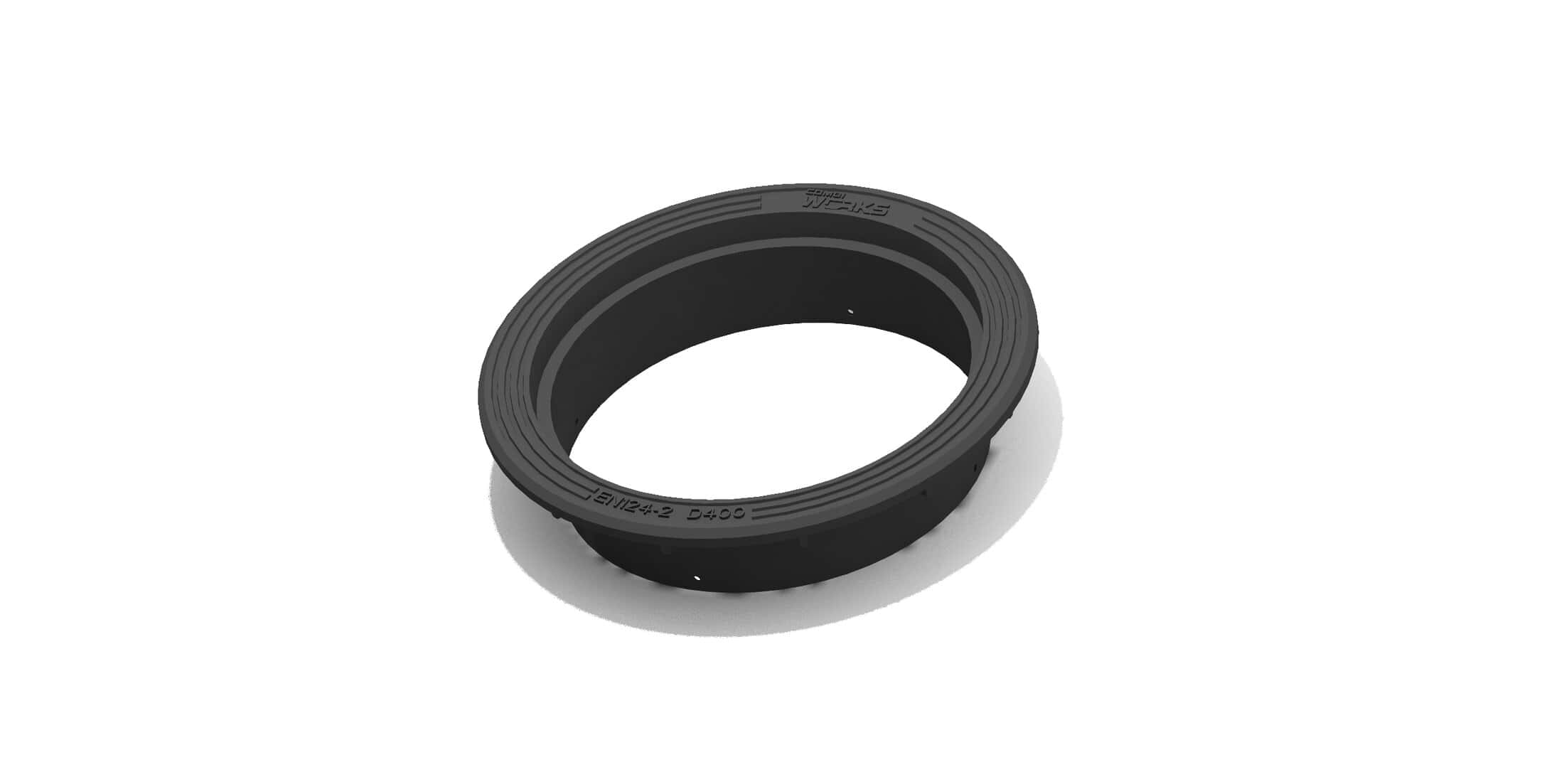

600/40 round frame

600/40-series 3366076-N is a floating type, round frame for round blind cover 3366077-N or grating 3366078-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

The frame is compatible with DN560 and DN630 mm telescope pipe.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366076-N
Warranty:
2
Years
Product category:
District heating, HD, Normal
Market:
Finland, Latvia, Norway, Sweden
Product type:
Frame
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200

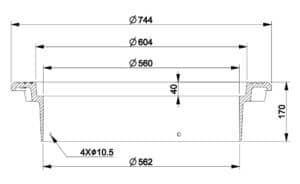

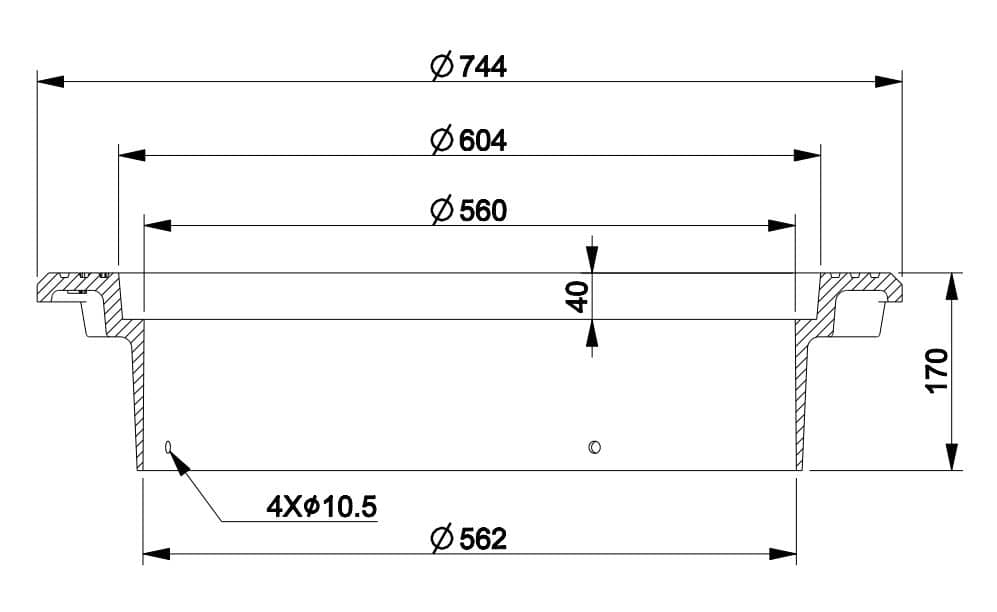

measurements:
Weight:
41
kg
Max height:
170
mm
diameter:
744
mm
Seating depth:
40
mm
Frame opening:
560
mm
