Manhole cover

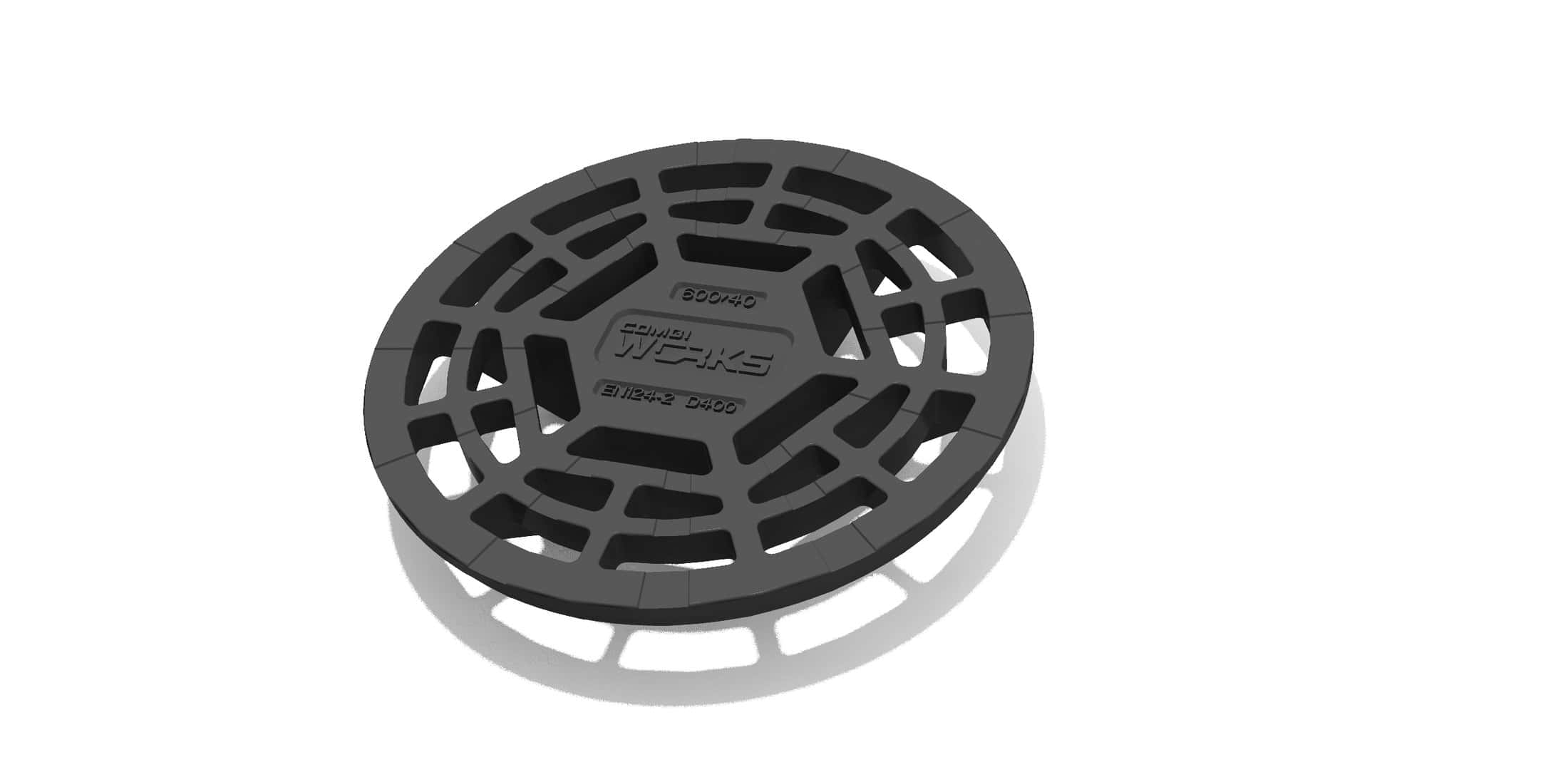

600/40 grating

600/40 D400 grating 3366078-N is compatible with a floating, round frame 3366076-N and a high frame 3366005-N. The grating is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366078-N
Warranty:
2
Years
Product category:
HD, Normal
Market:
Finland, Latvia, Norway, Sweden
Product type:
Grate
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200

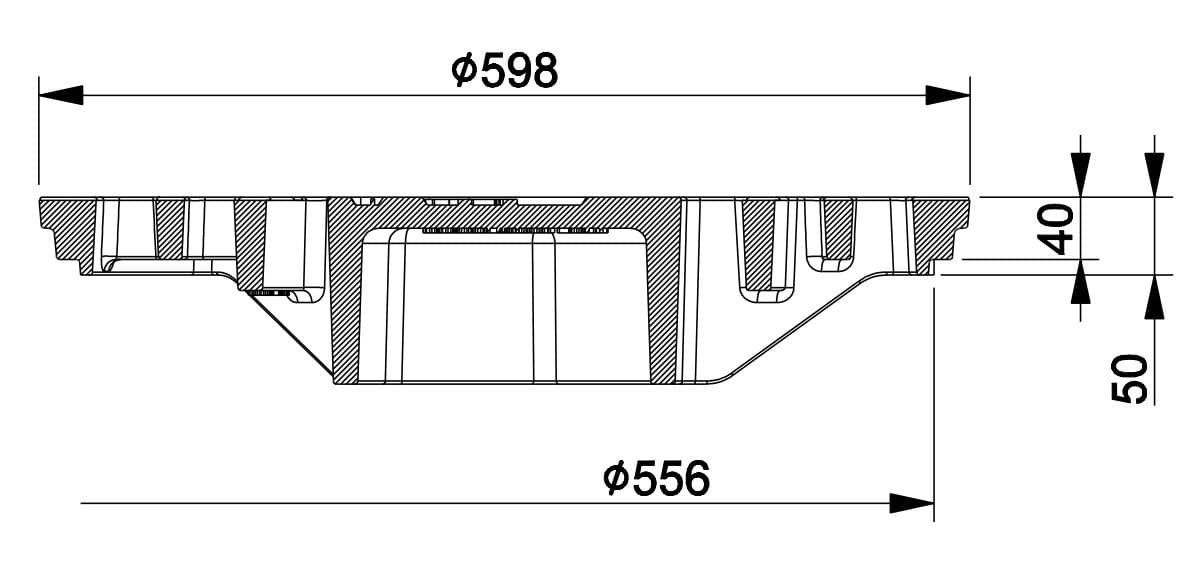

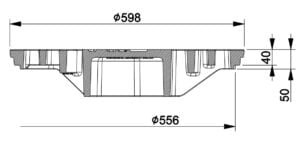

measurements:
Weight:
57
kg
Max height:
120
mm
diameter:
598
mm
Seating depth:
40
mm
