600/40 Floating Round Frame high and Blind Cover Set

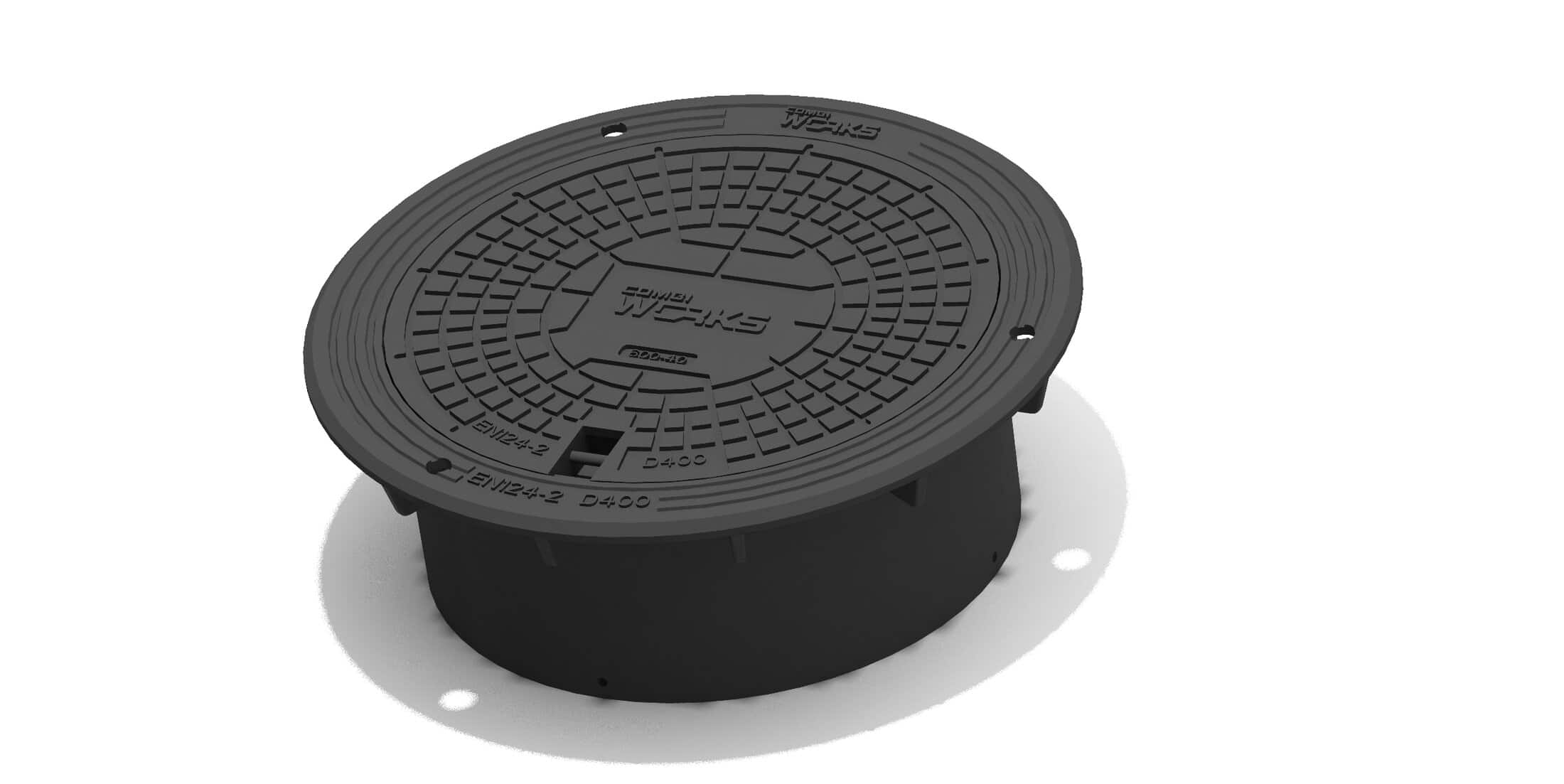

600/40 D400 3366005/77-N consists of a floating, round high frame 3366005-N and blind cover 3366077-N. The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600. The set assembly is compatible with 560 mm and 630 mm telescope pipe.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366005/77-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Finland, Latvia, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200

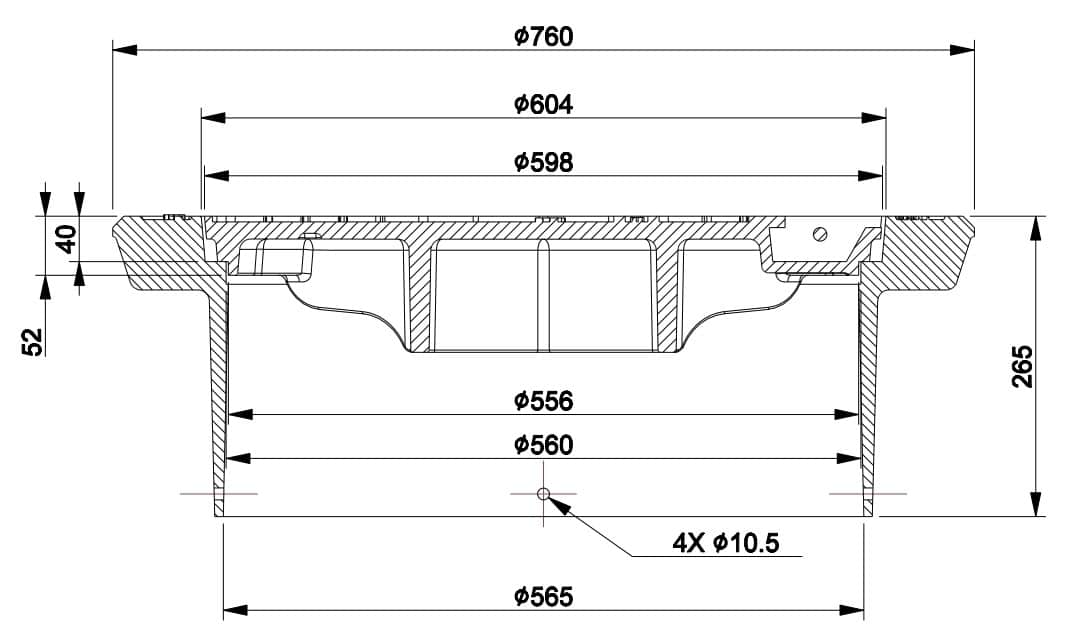

measurements:
Weight:
126
kg
Max height:
265
mm
diameter:
760
mm
Seating depth:
40
mm
Frame opening:
556
mm
