Manhole cover

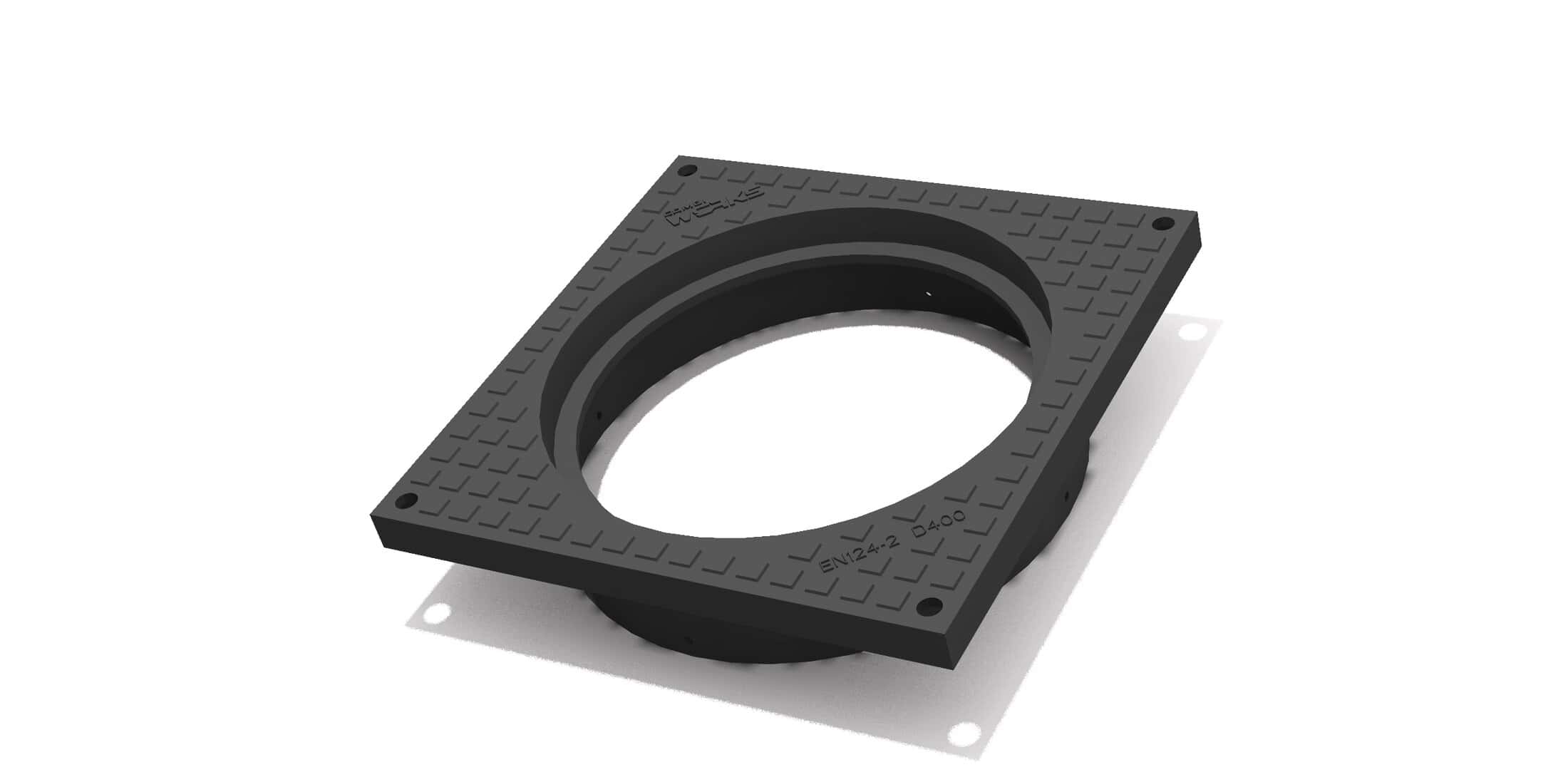

550/50 square frame
550/50-series 3366019-N is a floating type, square frame for round blind cover 3366021-N or grating 3366022-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.
The frame is compatible with DN560 and DN630 mm telescope pipe.
Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.
Specifications:
Product code:
3366019-N
Warranty:
2
Years
Product category:
District heating, HD, Normal
Market:
Finland, Norway, Sweden
Product type:
Frame
EN load class:
D400
Fit together:
2006319C
Product set:
3366019, 3366021, 3366022
