Manhole cover

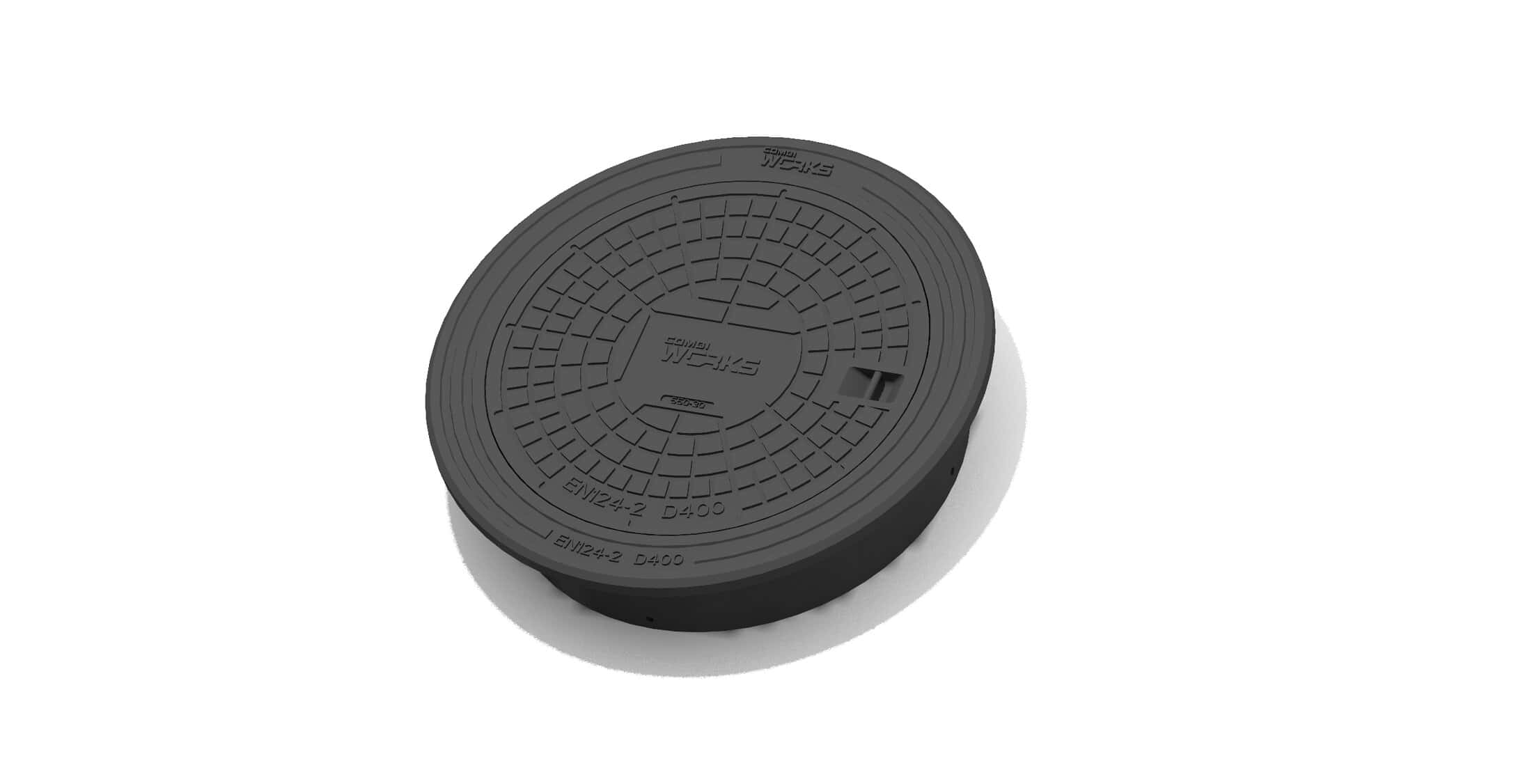

550/30 Round Frame and Blind Manhole Cover Set

550/30 D400 3366073/74-N consists of a floating, round frame (3366073-N) and blind cover (3366074-N). The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600. The set assembly is compatible with 560 mm and 630 mm telescope pipe.

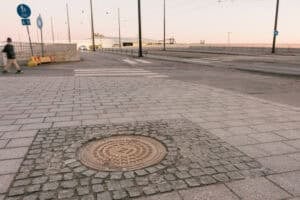

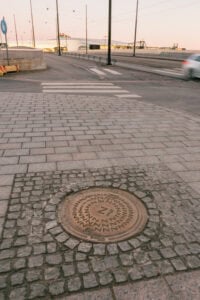

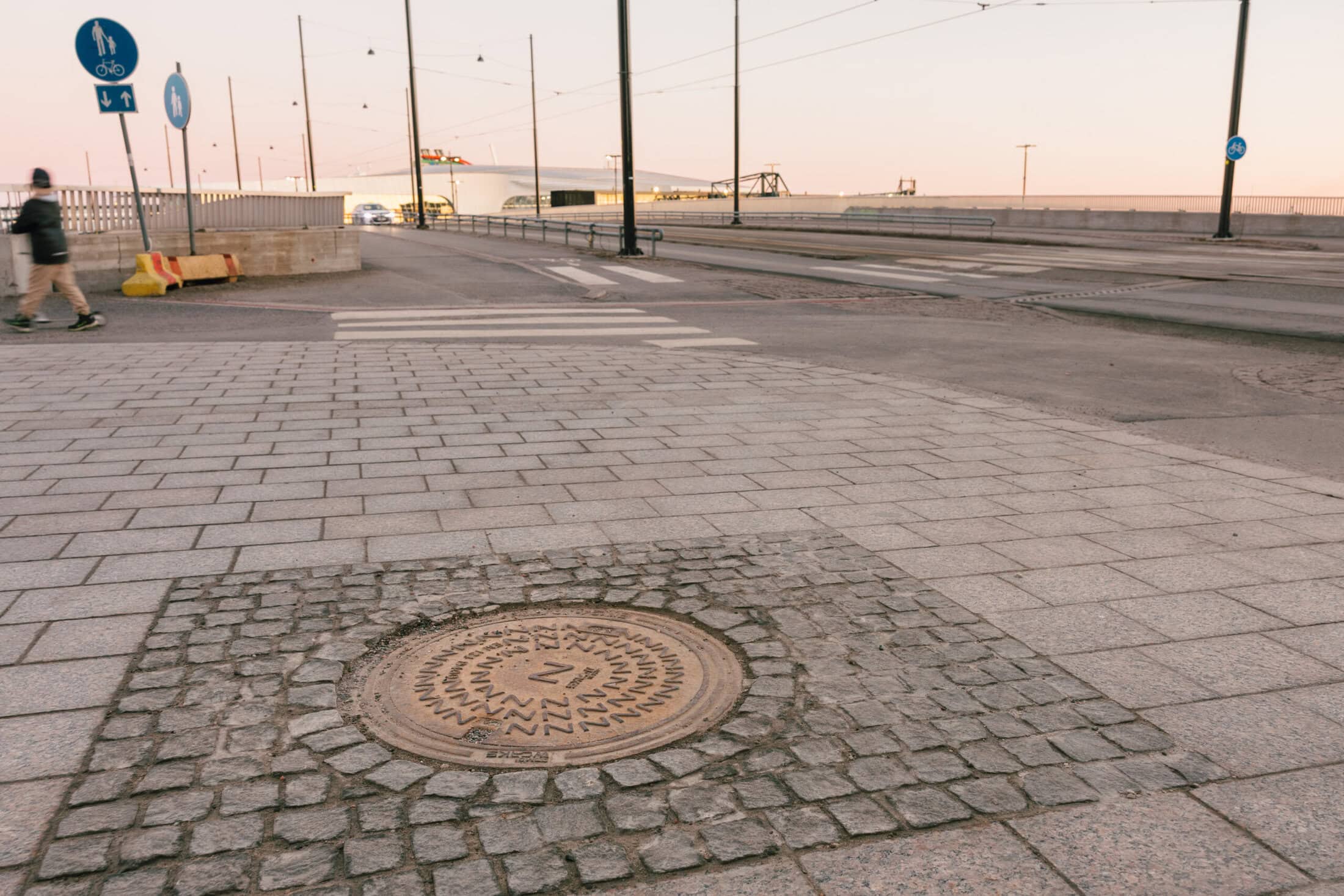

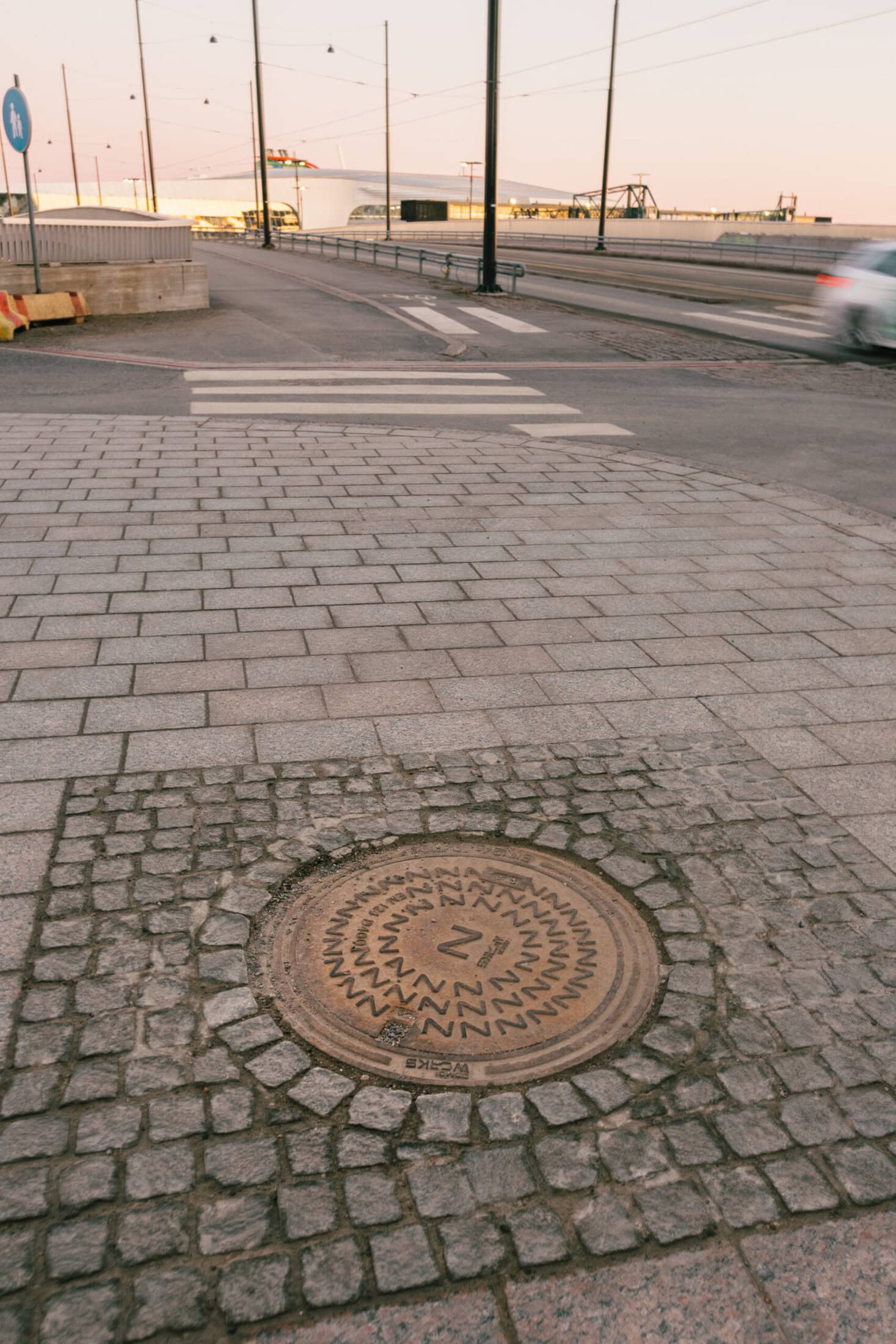

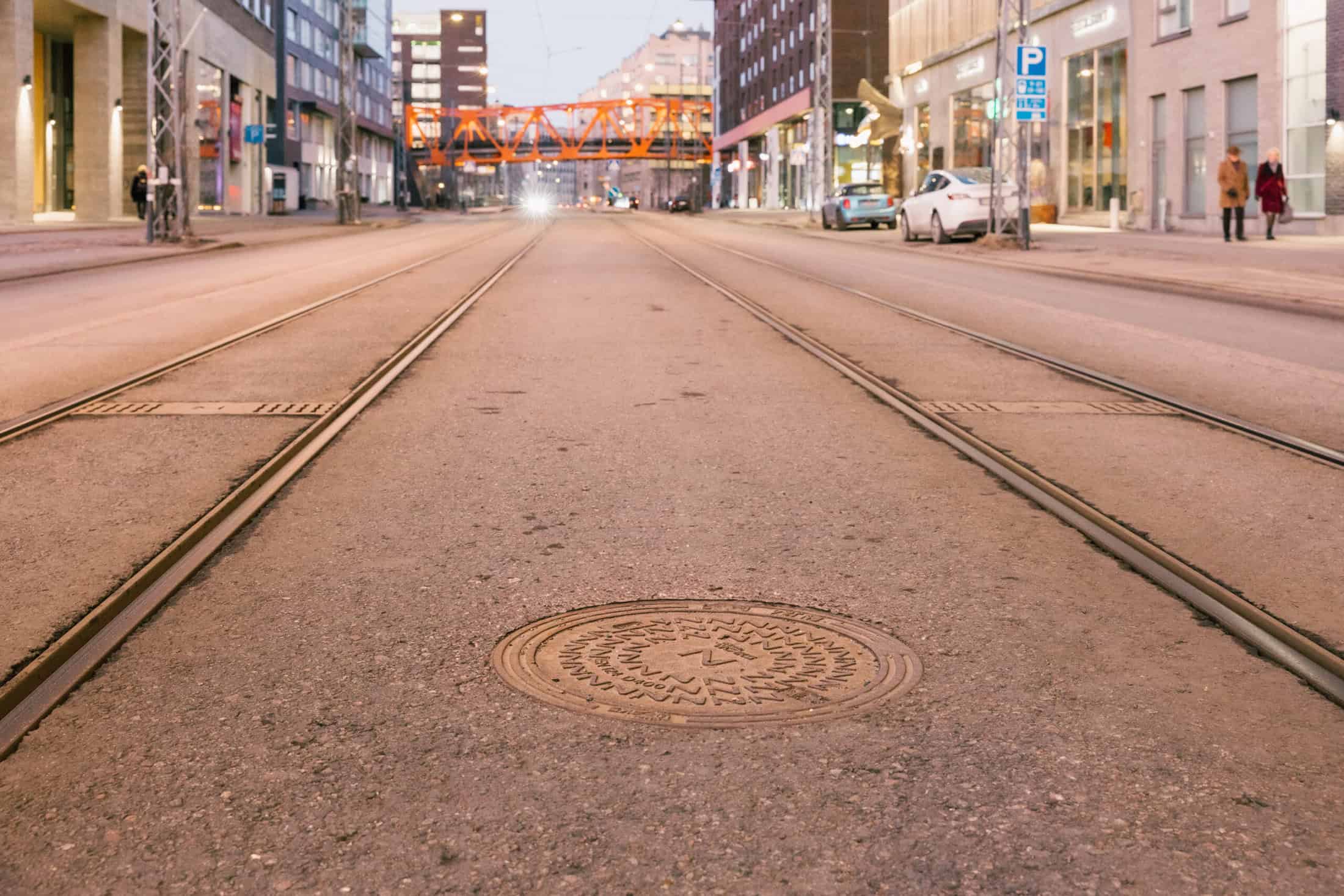

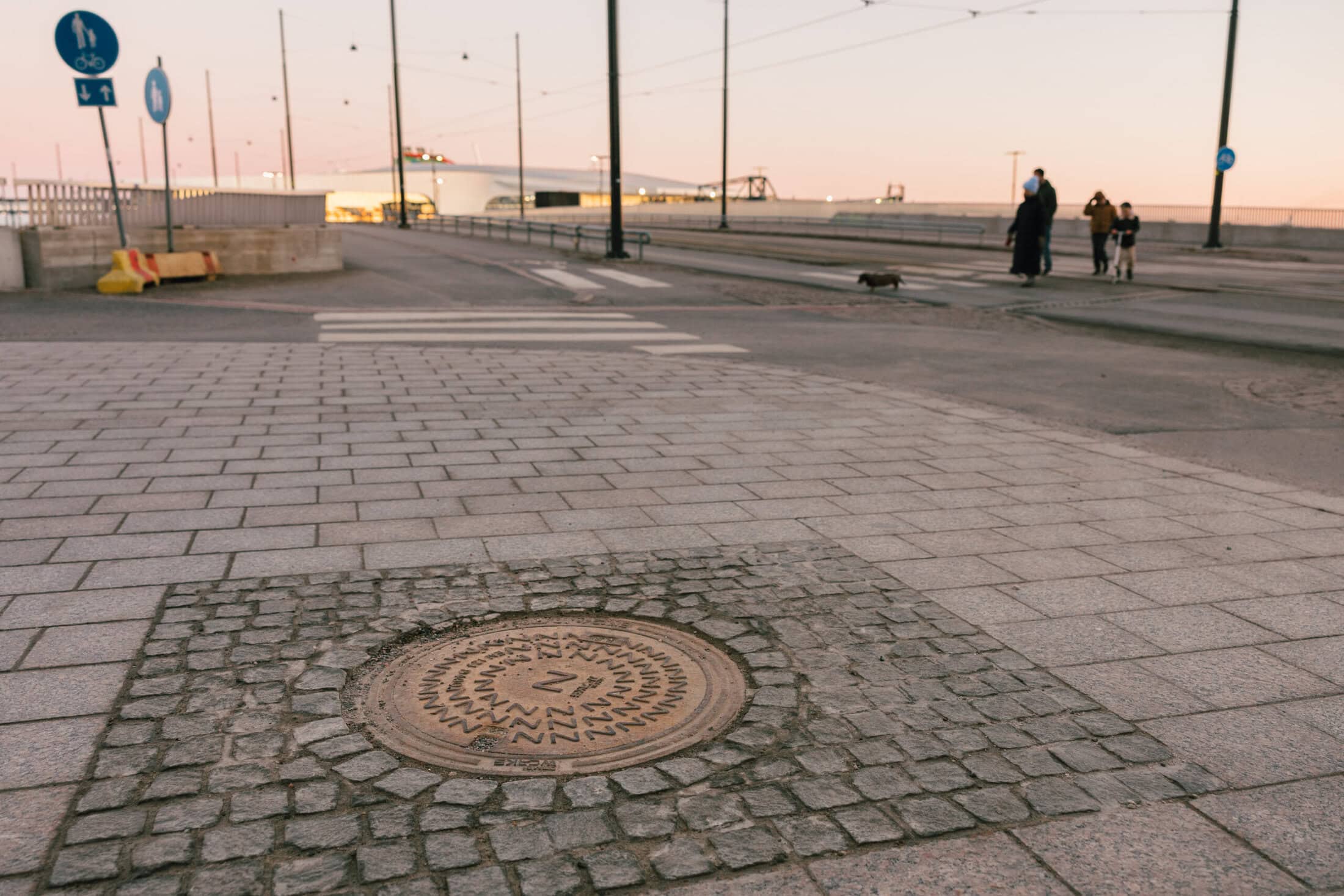

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366073/74-N
Warranty:
2
Years
Product category:
District heating, Normal
Market:
Finland, Latvia, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200

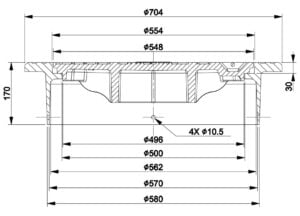

measurements:
Weight:
97
kg
Max height:
170
mm
diameter:
704
mm
Seating depth:
30
mm
Frame opening:
500
mm
