Manhole cover
500 frame with blind manhole cover set

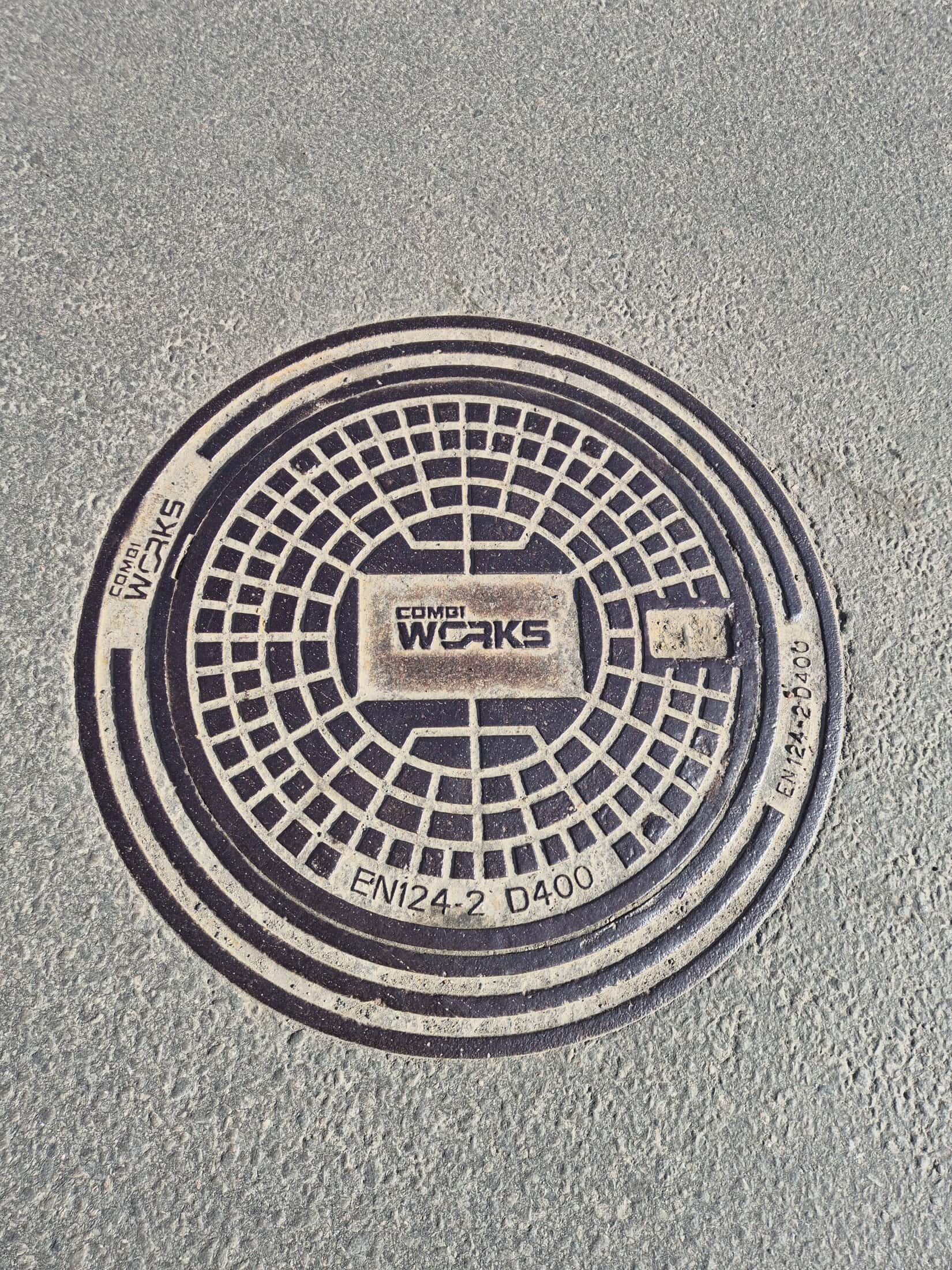

500 D400 3366031/2-N manhole cover consists of a floating, round frame 3366031-N and blind cover 3366032-N. The set is designed for Nordic conditions, in accordance with standard EN124-2:2015, manufactured from grey cast iron EN-GJL-200 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600 or opening tool 2004001. The set assembly is compatible with DN500 mm telescope pipe.

Typical applications are service stations, industrial buildings, car parks, public roads.

Specifications:
Product code:
3366031/2-N
Warranty:
2
Years
Product category:
ASTV
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Set
EN load class:
D400
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
68
kg
Max height:
120
mm
diameter:
650
mm
Seating depth:
20
mm
Frame opening:
462
mm
