Manhole cover

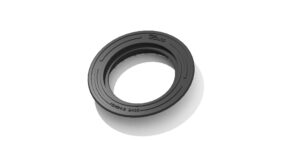

315 Optimized round frame

315-series Optimized 3366131-N is floating type, round frame for lockable, round blind cover 3366132-N or grating 3366133-N. The frame is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

The frame assembly is compatible with DN315 mm telescope pipe.

Typical applications are inner streets, car parks, pedestrian zones.

Specifications:
Product code:
3366131-N
Warranty:
1
Years
Product category:
Optimized
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Frame
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7

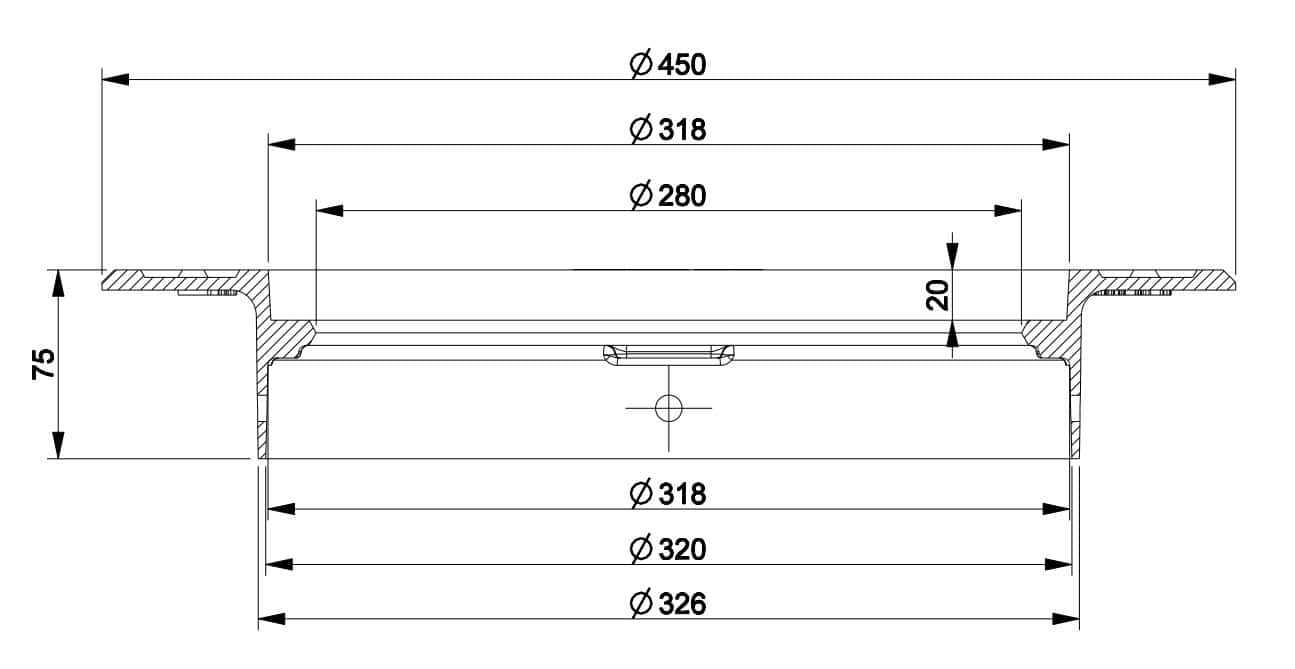

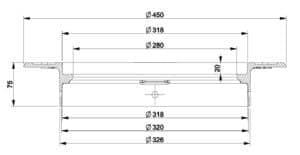

measurements:
Weight:
8
kg
Max height:
75
mm
diameter:
450
mm
Seating depth:
20
mm
Frame opening:
280
mm
