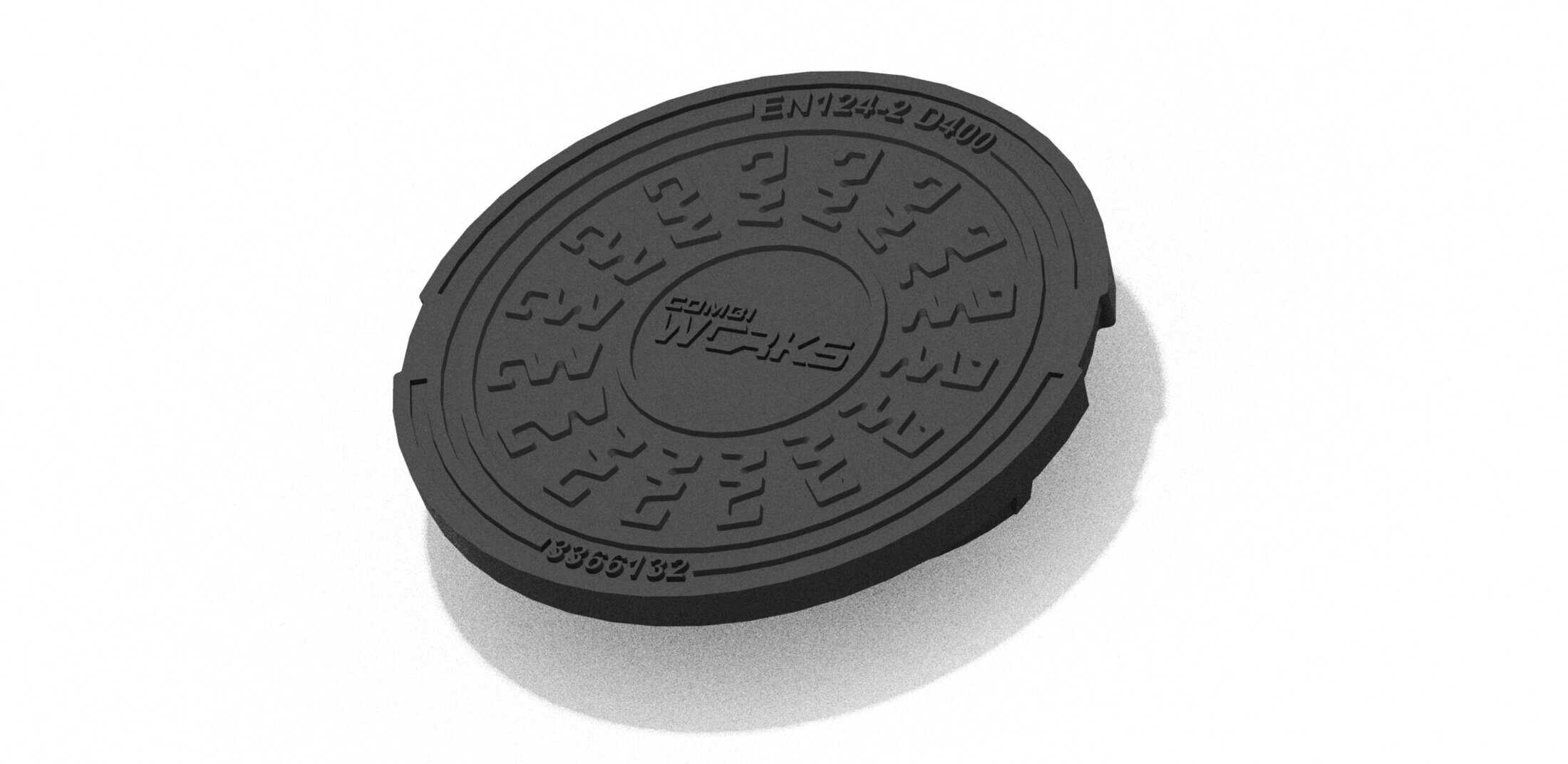

315 Optimized Blind Manhole Cover with Spring Locks

315-series Optimized round blind cover 3366132-N is compatible with Optimized, round frame 3366131-N. The blind cover is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

Cover can be opened using a crowbar. The set assembly is compatible with DN315 mm telescope pipe

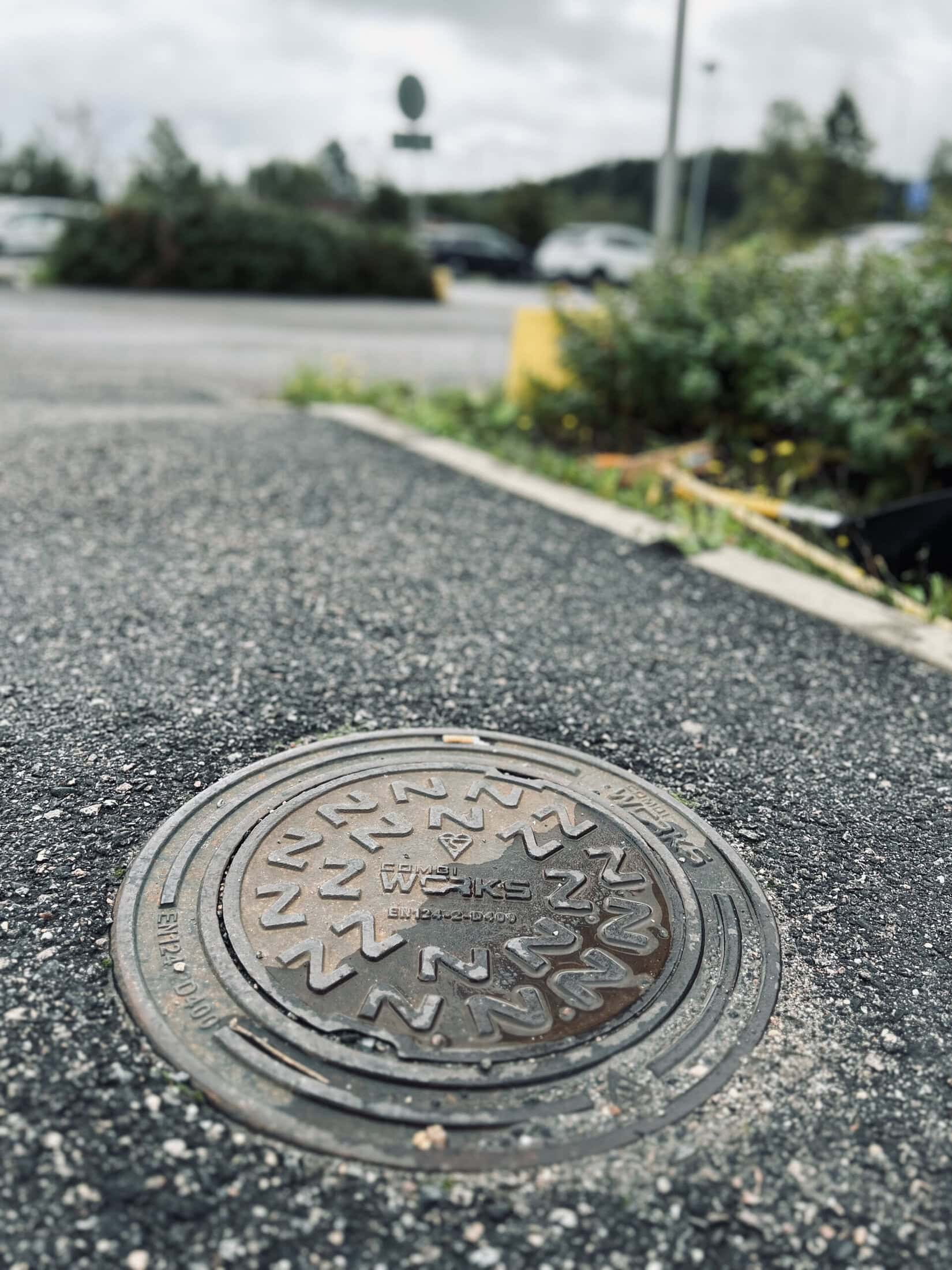

Typical applications are inners streets, car parks, pedestrian zones.

Specifications:
Product code:
3366132-N
Warranty:
1
Years
Product category:
Optimized
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Cover
Locking mechanism:
Spring locks
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7

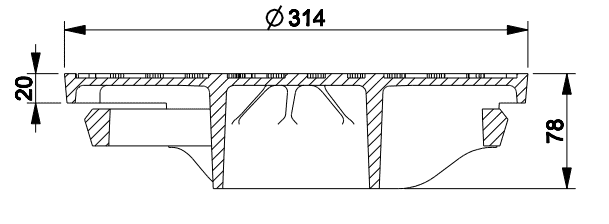

measurements:
Weight:
7
kg
Max height:
78
mm
diameter:
314
mm
Seating depth:
20
mm
