Manhole cover
315 Normal frame with lockable grating set

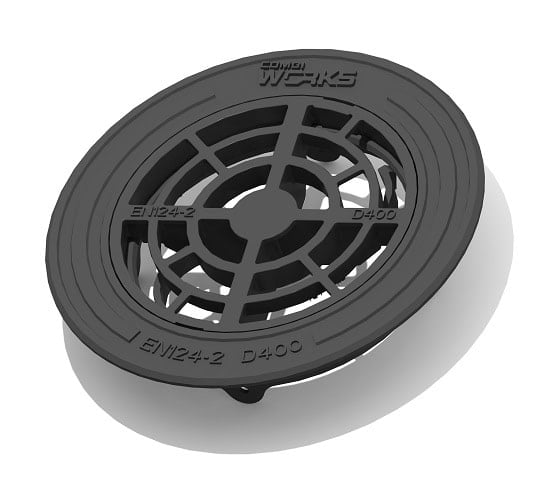

315-series Normal set 3366044/6-N consists of a floating, rounded frame (3366044-N) and a lockable, rounded grating cover (3366046-N). The set is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.
Grating can be opened using a crowbar. The set assembly is compatible with DN315 mm telescope pipe
Typical applications are inner streets, car parks, pedestrian zones.
Specifications:
Product code:
3366044/6-N
Warranty:
2
Years
Product category:
Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Set
Locking mechanism:
Spring locks
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7

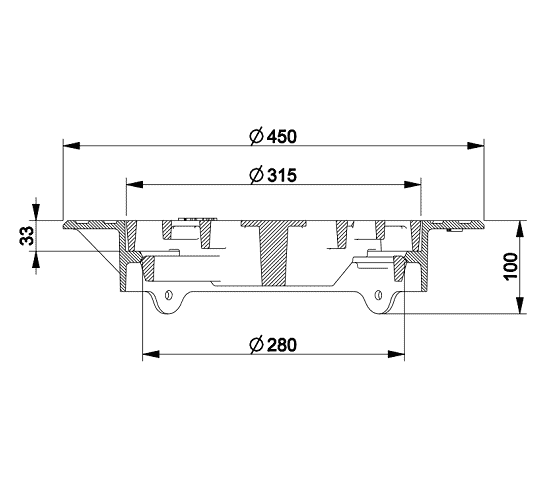

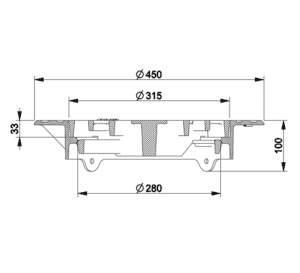

measurements:
Weight:
18
kg
Max height:
100
mm
diameter:
450
mm
Seating depth:
33
mm
Frame opening:
280
mm
Pipe fit outer diameter:
315
mM
How to: Open a Lockable Manhole Cover
This video demonstrates how to open with a crowbar, quick clean and close the cover easily. It showcases our lockable manhole cover of 315 series, but same method applies to all other Combi Works lockable manhole covers.
