Manhole cover

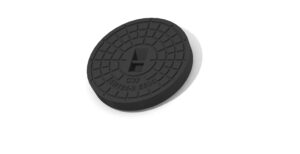

315 blind cover E600

315-series E600 round blind cover 3366041D-N is compatible with a round frame 3366040D-N. The blind cover is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class E600.

Cover can be opened using a magnetic lifter CW1600. The set assembly is compatible with 315 mm telescope pipe.

Typical applications are service stations, industrial buildings, heavy vehicle car parks, public roads.

Specifications:
Product code:
3366041D-N
Warranty:
2
Years
Product category:
ASTV, HD
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Cover
EN load class:
E600
Material marks:
Ductile EN-GJS-500/7

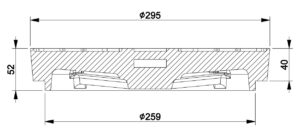

measurements:
Weight:
18
kg
Max height:
52
mm
diameter:
295
mm
Seating depth:
40
mm
