Manhole cover

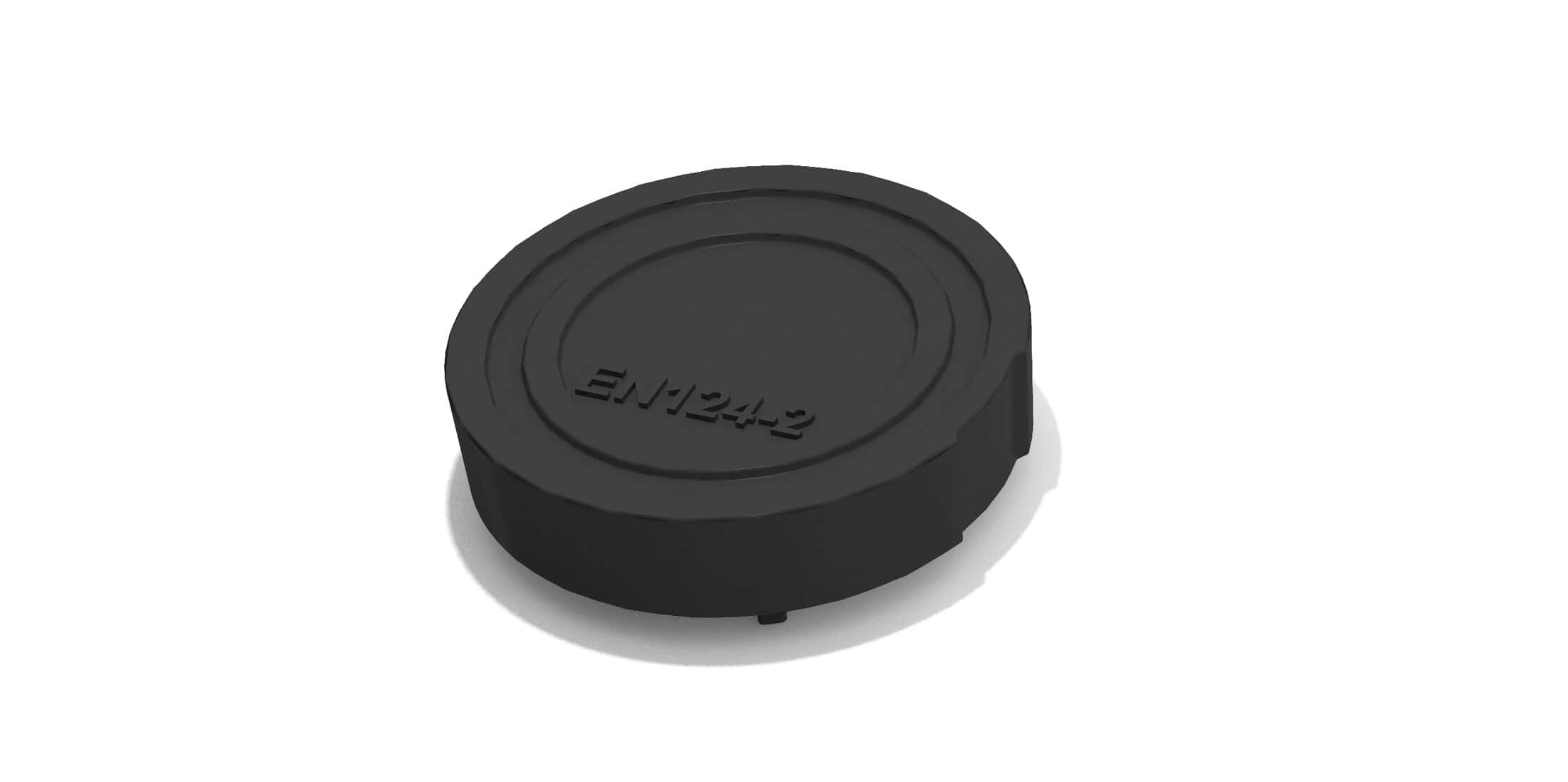

160/200 Normal blind cover

160/200-series Normal round blind cover is compatible with Normal, round frame 3366051-N. The blind cover is designed for Nordic conditions, in accordance with standard EN 124-2:2015, manufactured from ductile iron EN-GJS-500/7 and is classified under Load Class D400.

Cover can be opened using a magnetic lifter CW1600. The set assembly is compatible with DN160 and DN200 mm telescope pipe

Typical applications are inner streets, car parks, pedestrian zones.

Specifications:
Product code:
3366052-N
Warranty:
2
Years
Product category:
Normal
Market:
Estonia, Finland, Latvia, Norway, Sweden
Product type:
Cover
EN load class:
D400
Material marks:
Ductile EN-GJS-500/7

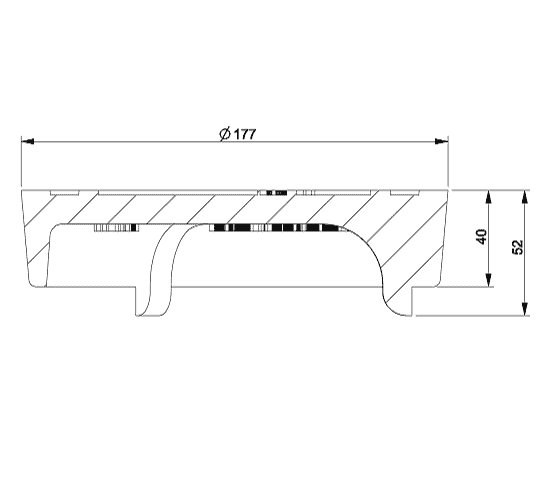

measurements:
Weight:
3
kg
Max height:
52
mm
diameter:
177
mm
