The Complete Ground-Up Installation Kit

EV charging installation system for homes, municipalities, property developers, contractors and utilities across Northern Europe, from the anchor in the ground to the charger mounting on the pole.

Every component is engineered to work together: a subterranean anchor, an installation pole and a charger adapter plate. You choose the anchor type that fits your project economics and site conditions. We supply the rest as a matched system, reducing purchasing hassle, installation time, and coordination risk across your charging rollout.

The EV Charger Pole assembly kit is compatible with most of the commercial EV Charger models in the market.

The EV Charger Pole Assembly Kit

The EV Charger Pole assembly kit includes all the needed accessories (except the actual charger) for setting up the EV charger on a pole. All components have been tested for compatibility to ensuring a straightforward installation process, a reliable match between components, and smooth mounting.

There are 3 foundation alternatives to the kit

1 – Steel foundation

2 – Concrete foundation

X   or no foundation / bolted to the surface

All the products of the kit can also be ordered separately.

801K01-5012*The EV Charger Pole Assembly Kit includes:

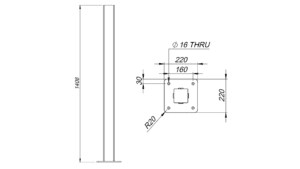

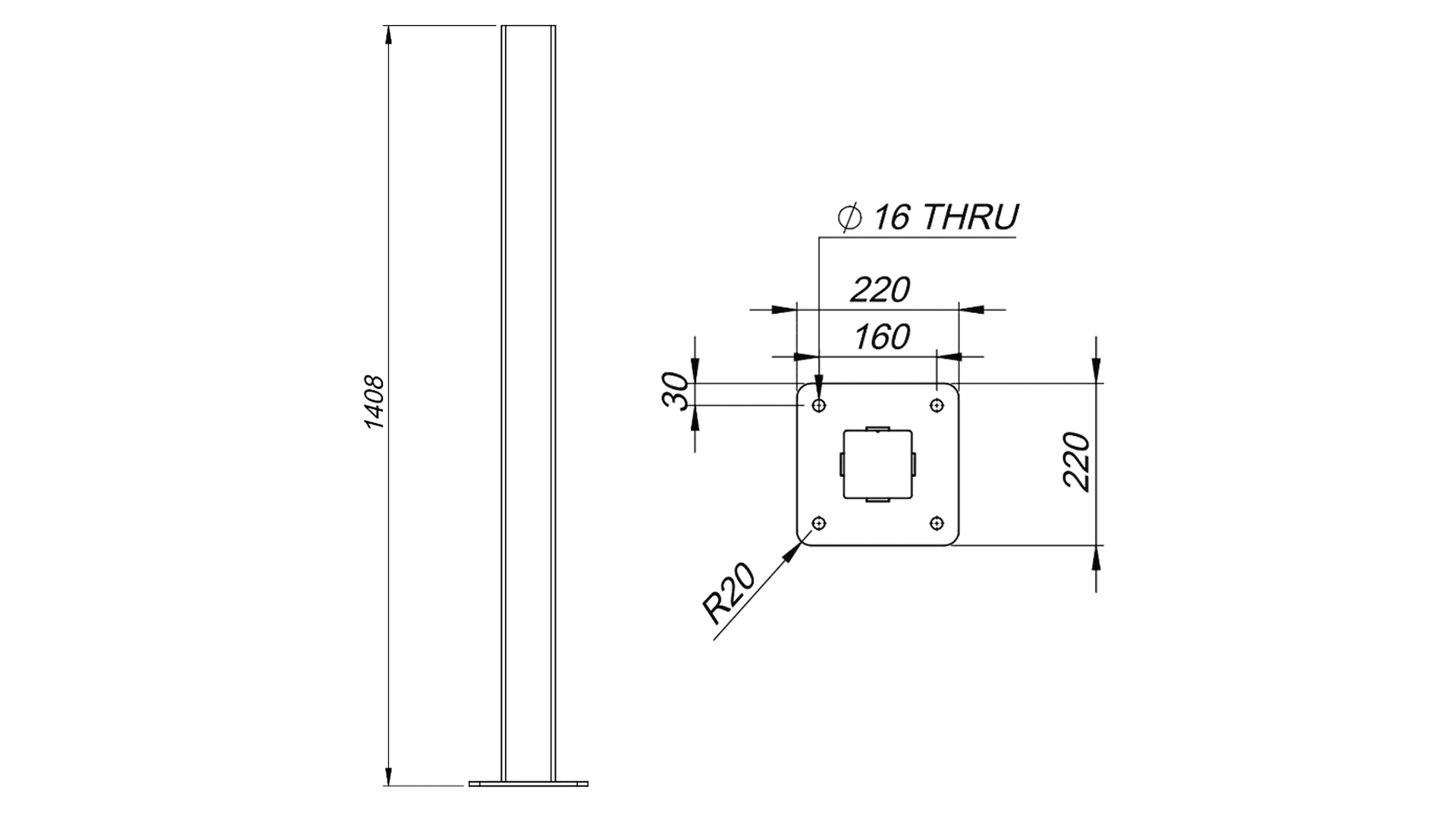

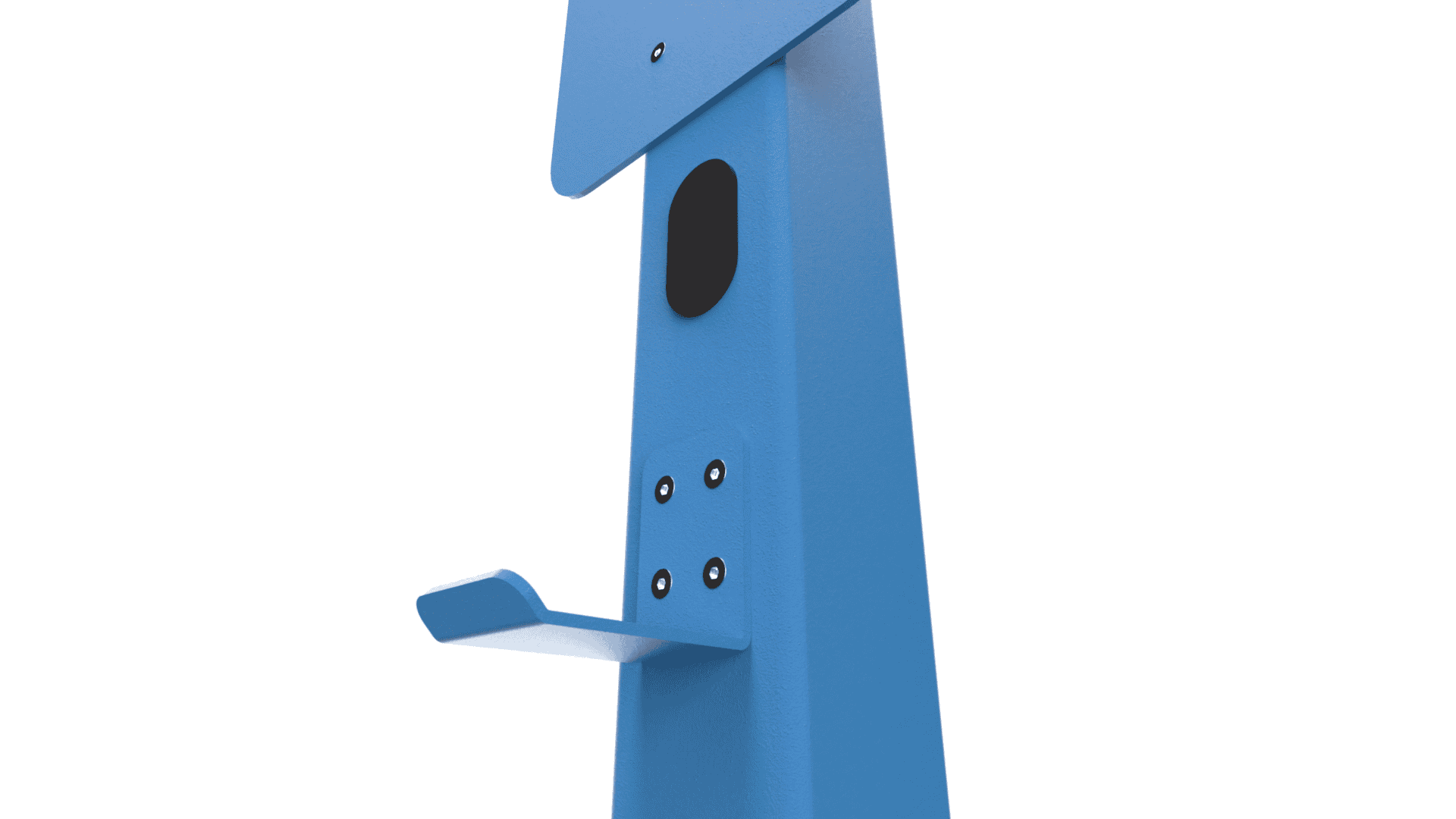

801C100x100x4PB14-5012* EV charger mounting pole, RAL5012 / RAL5008

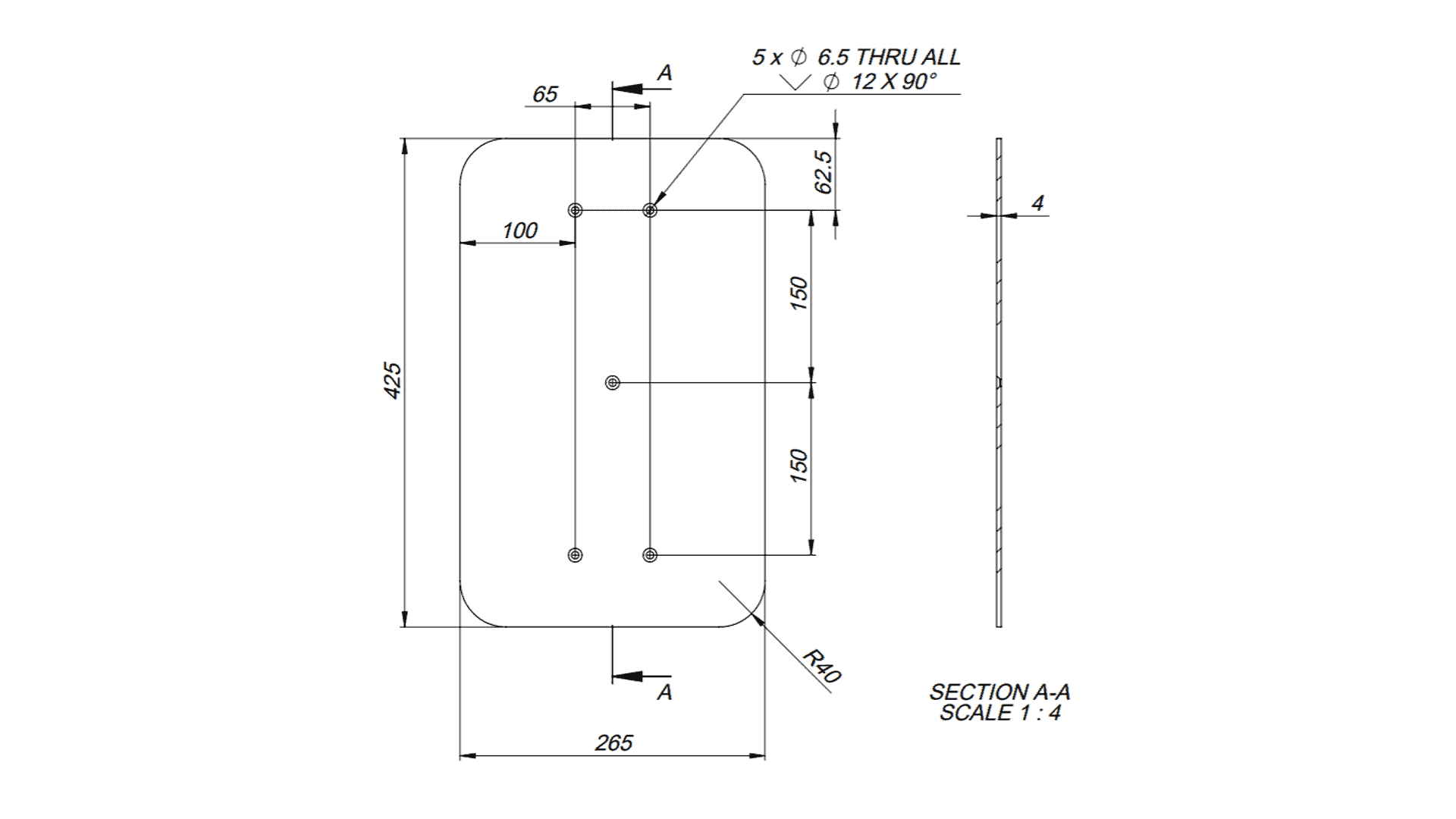

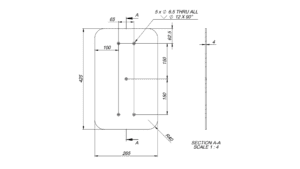

801GP-5012* EV charger universal mounting plate, RAL5012 / RAL5008

Two alternatives for the Foundation for the pole:

1. Steel foundation

         801FHB EV Charger Foundation, steel, hot dip galvanized

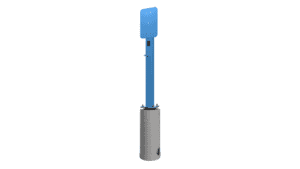

2. Concrete foundation

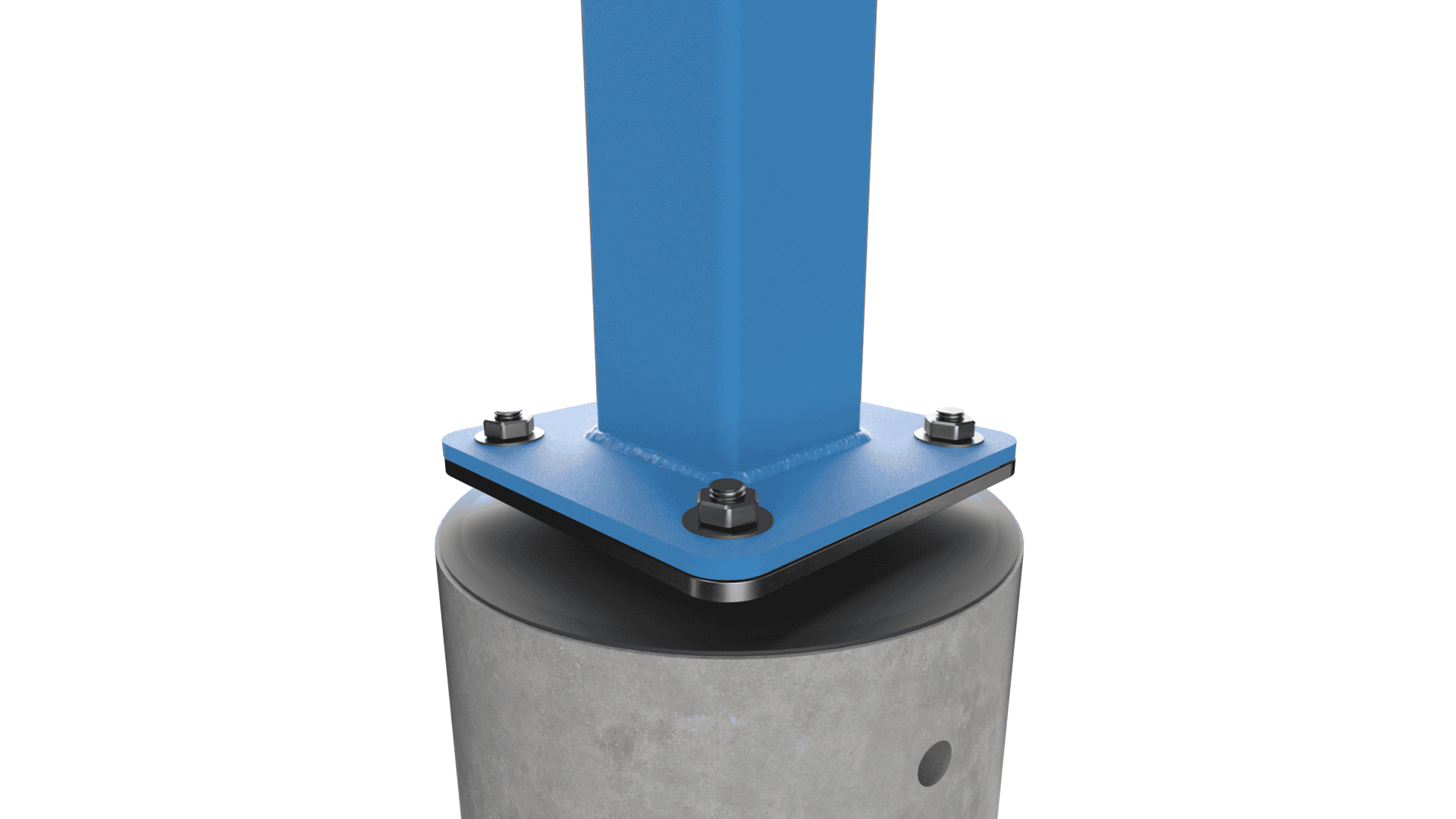

         801H EV charger foundation, precast concrete (including the adapter for concrete foundation)

         801JPB-5012* EV charger adapter for concrete foundation

*Last 4 digits of the product code represent the RAL colour code of the product.

There are two alternative colours: blue (RAL5012) or grey (RAL5008).
