Manhole cover
Surface box 8T for water

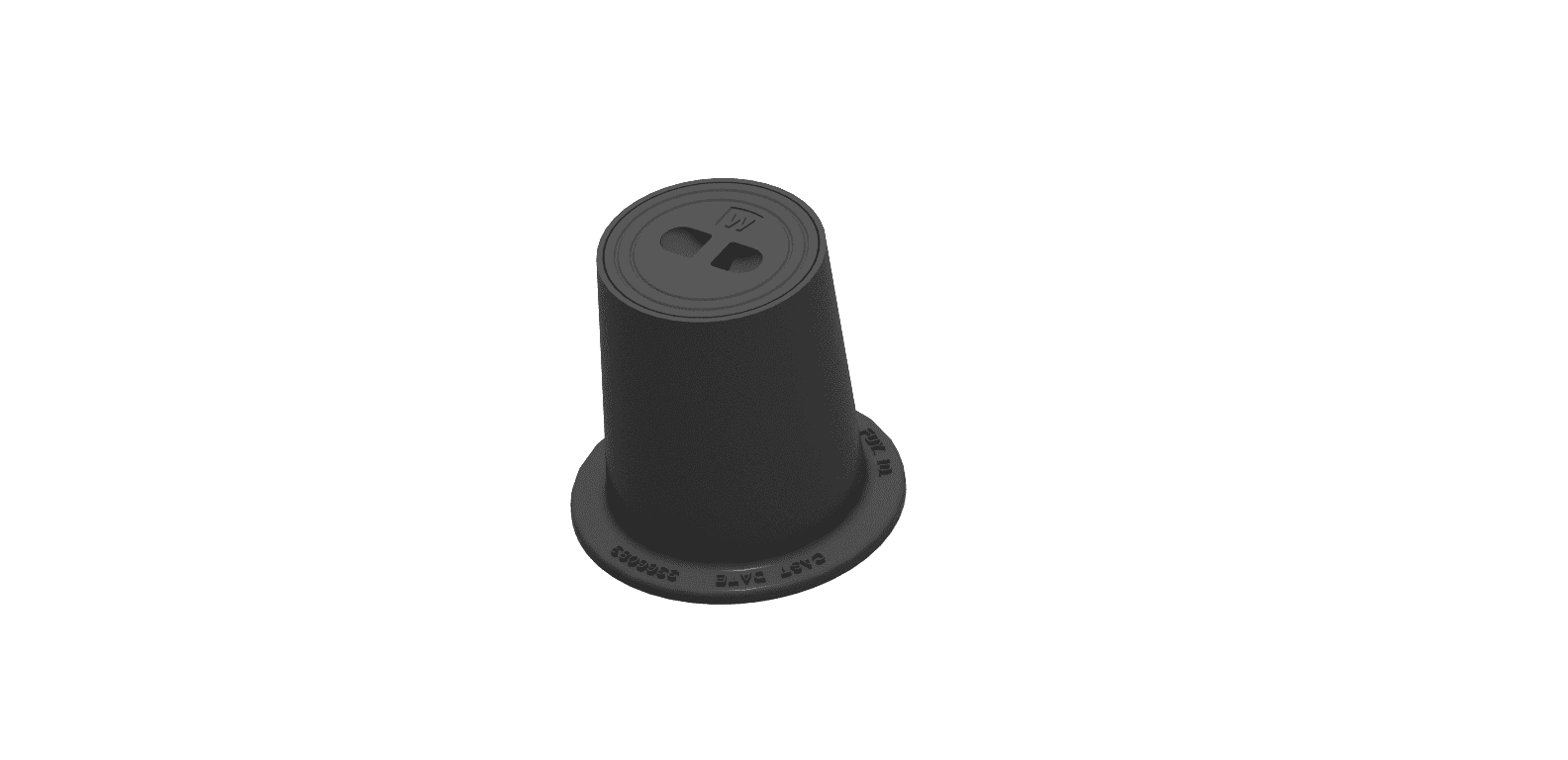

Surface box series set 3366083-W consists of a fixable, round frame and a non-lockable, round blind cover with marking W (Water). The set is designed for Nordic conditions, manufactured from grey cast iron EN-GJL-200 and taking max load 80kN.

Surface boxes do not have to meet the EN124-2: 2015 standard, load tests have been performed by the manufacturer itself.

Cover can be opened using a magnet lifter.

Typical applications are areas where EN124-2: 2015 is not required.

Specifications:
Product code:
3366083-W
Warranty:
2
Years
Market:
Estonia, Finland, Norway, Sweden
Product type:
Set
Material marks:
Grey Cast EN-GJL-200
measurements:
Weight:
4
kg
Max height:
152
mm
diameter:
110
mm
Seating depth:
10
mm
Frame opening:
90
mm
