Manhole cover

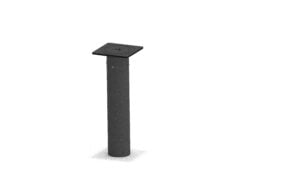

Square surface box with blind cover SN2 telescope set

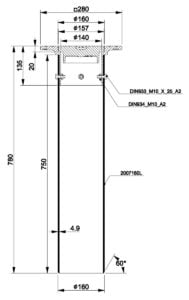

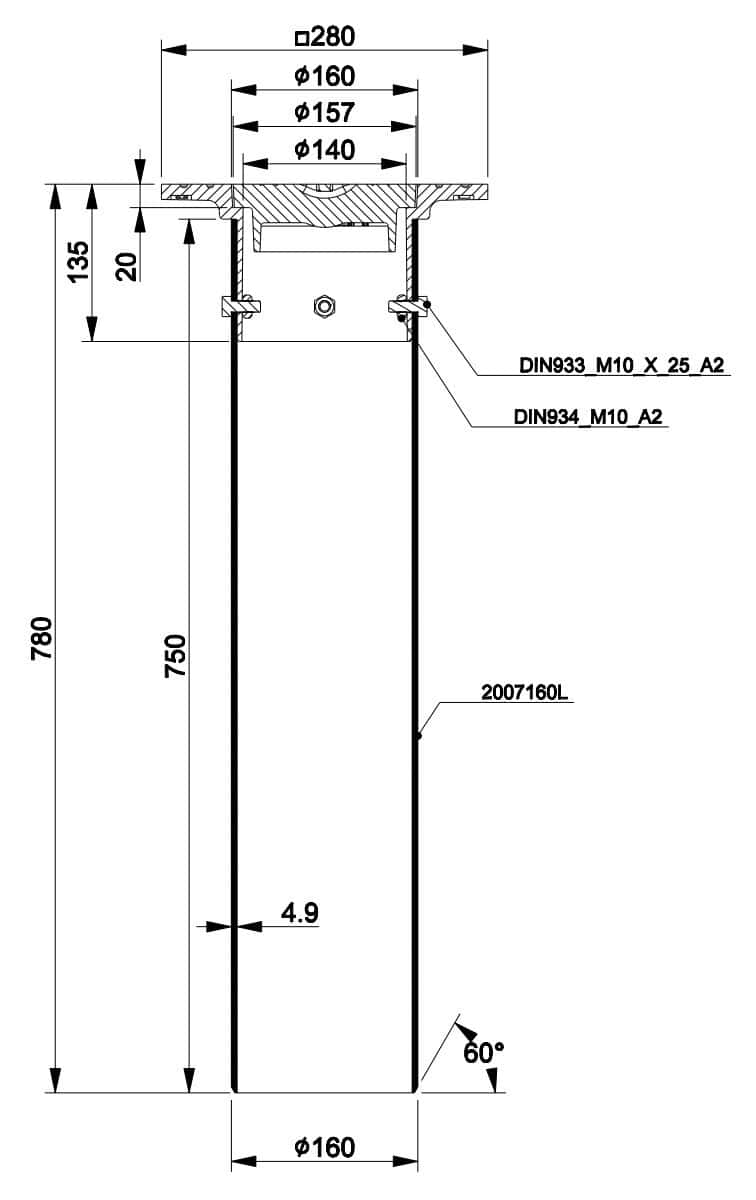

2001682-WSQ telescope set for valves consists of a floating, square frame 3366082-WSQ manhole cover set, DN160 x 4,9mm x 0,75m SN2 telescope pipe and M10 bolts and nuts. The set is designed for Nordic conditions and manufactured from grey cast iron EN-GJL-200 and taking max load 400kN.
Surface boxes do not have to meet the EN124-2: 2015 standard, load tests have been performed by the manufacturer itself.
Cover can be opened using a magnet lifter.
Typical applications are areas where EN124-2: 2015 is not required.
Specifications:
Product code:
2001682-WSQ
Warranty:
2
Years
Market:
Estonia
Product type:
Set
Material marks:
Iron and plastic telescope
measurements:
Weight:
14.5
kg
Width:
280
mm
Max height:
790
mm
Seating depth:
20
mm
Lenght:
280
mm
Frame opening:
140
mm
